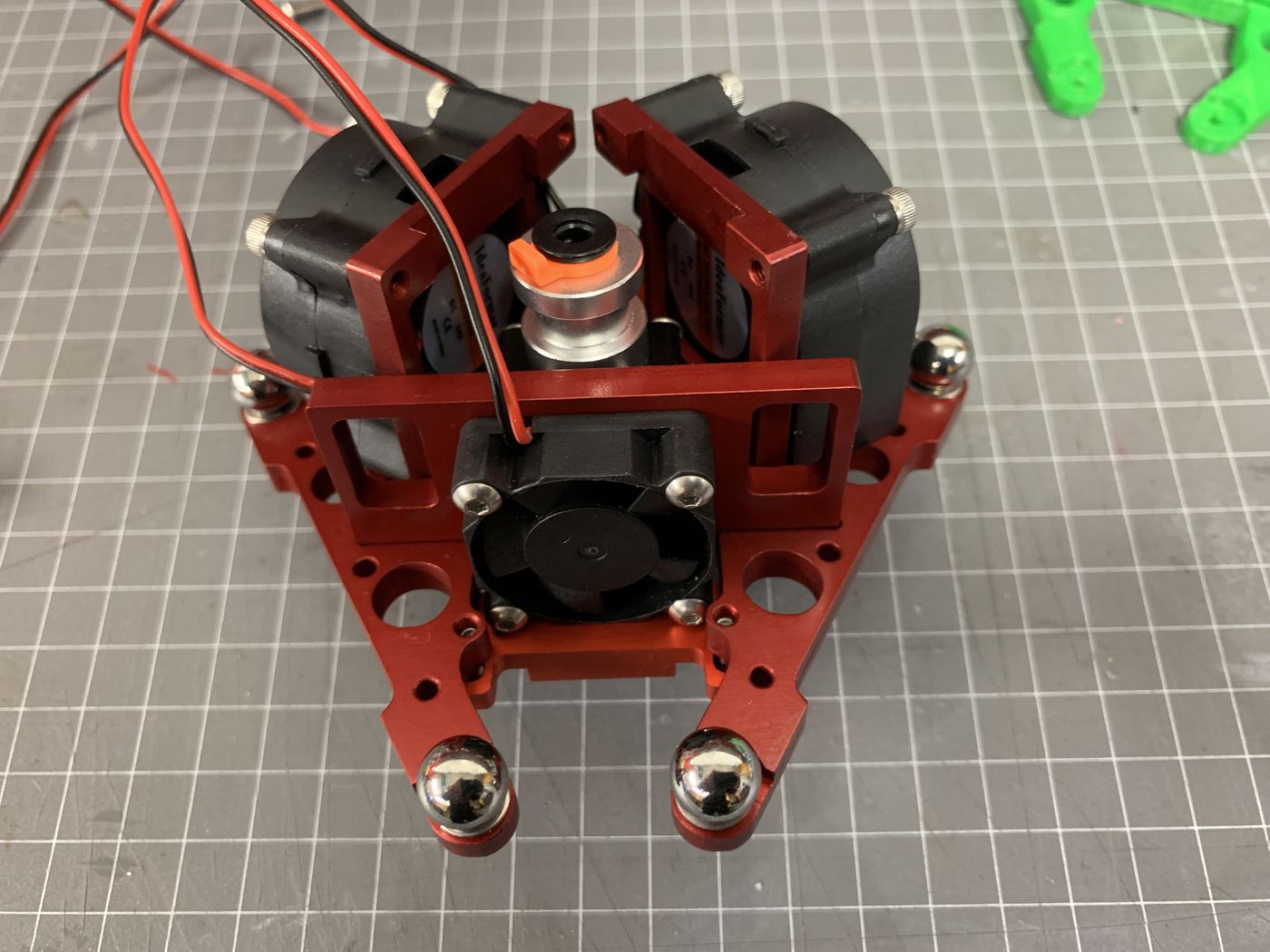

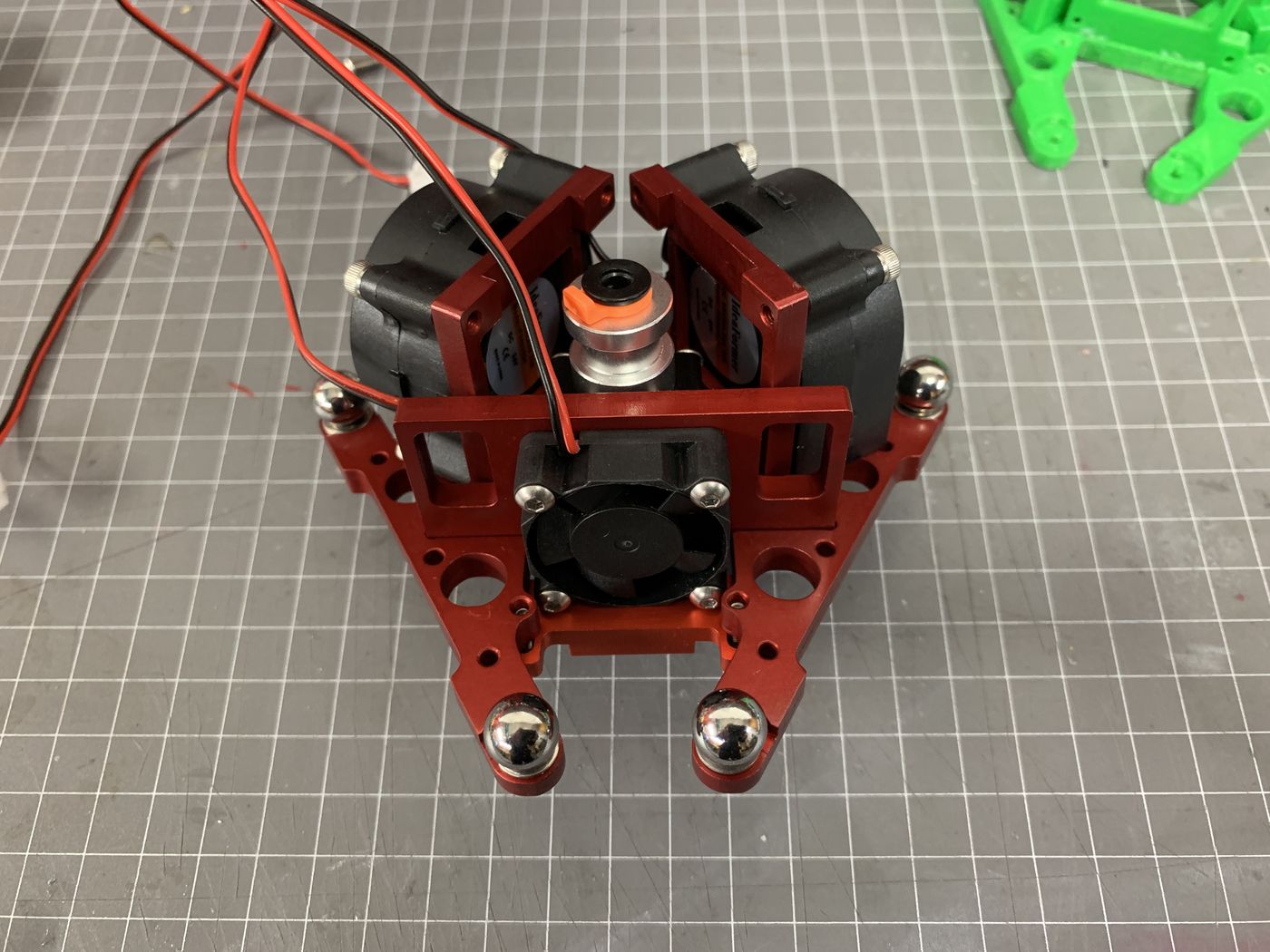

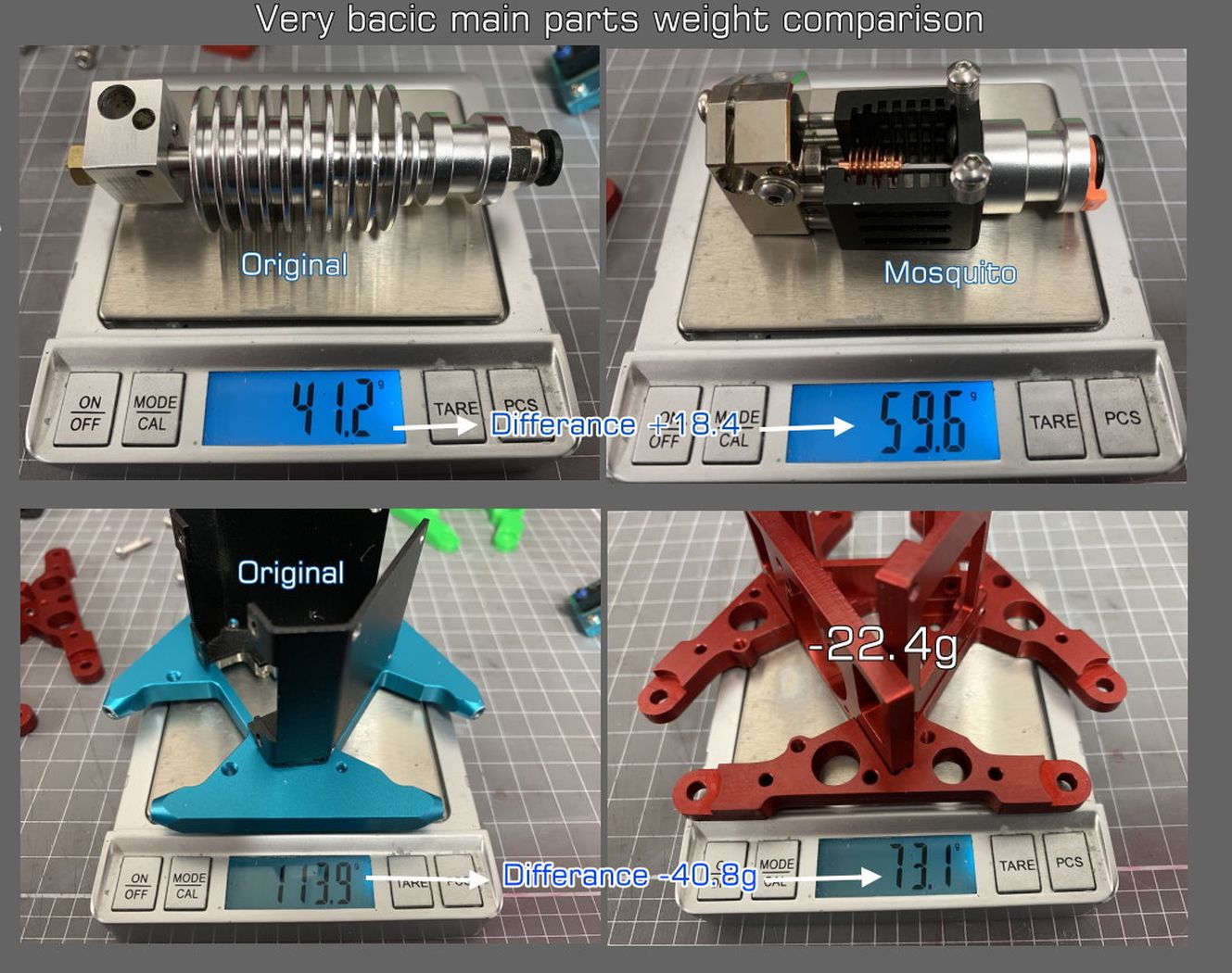

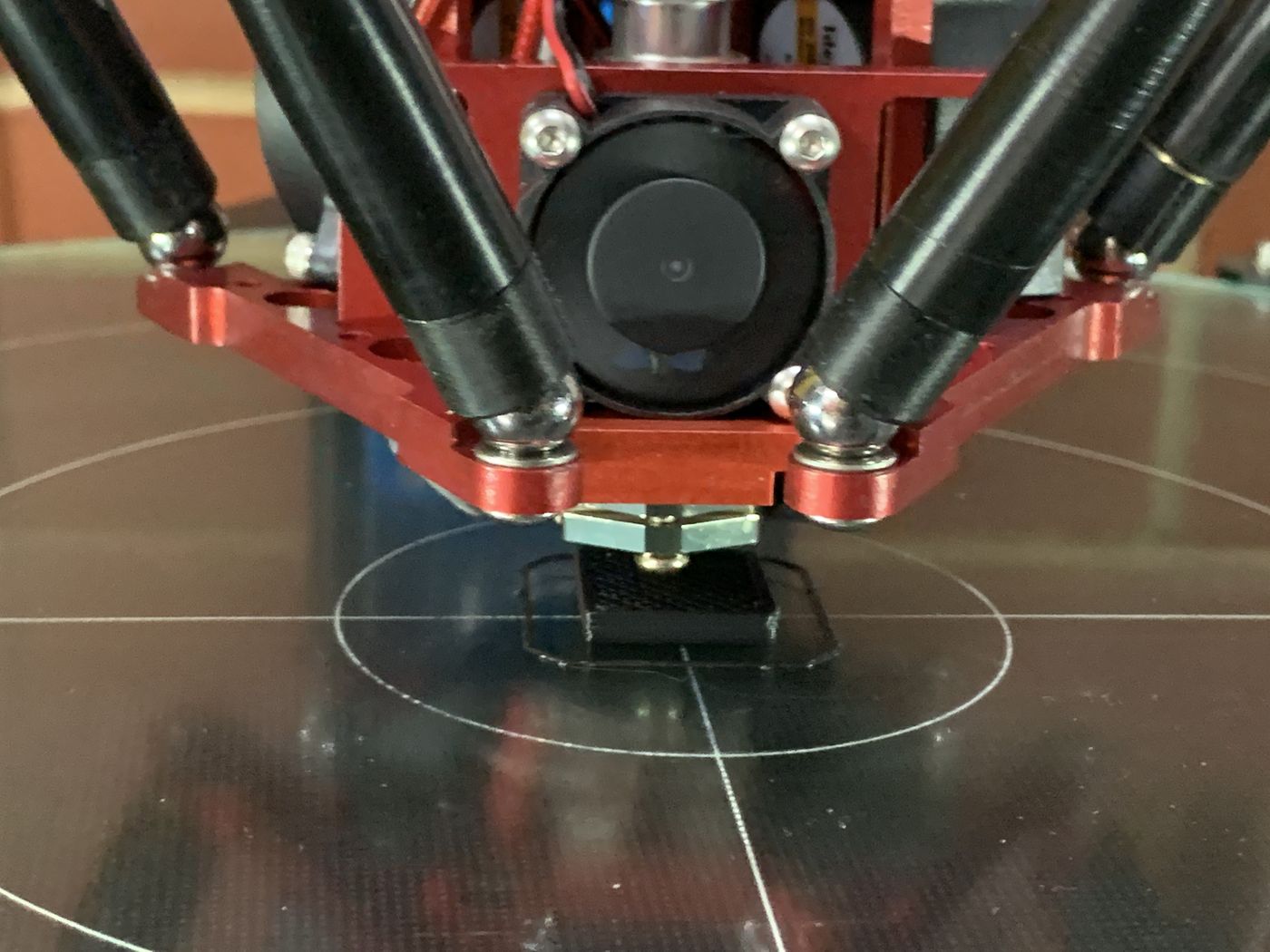

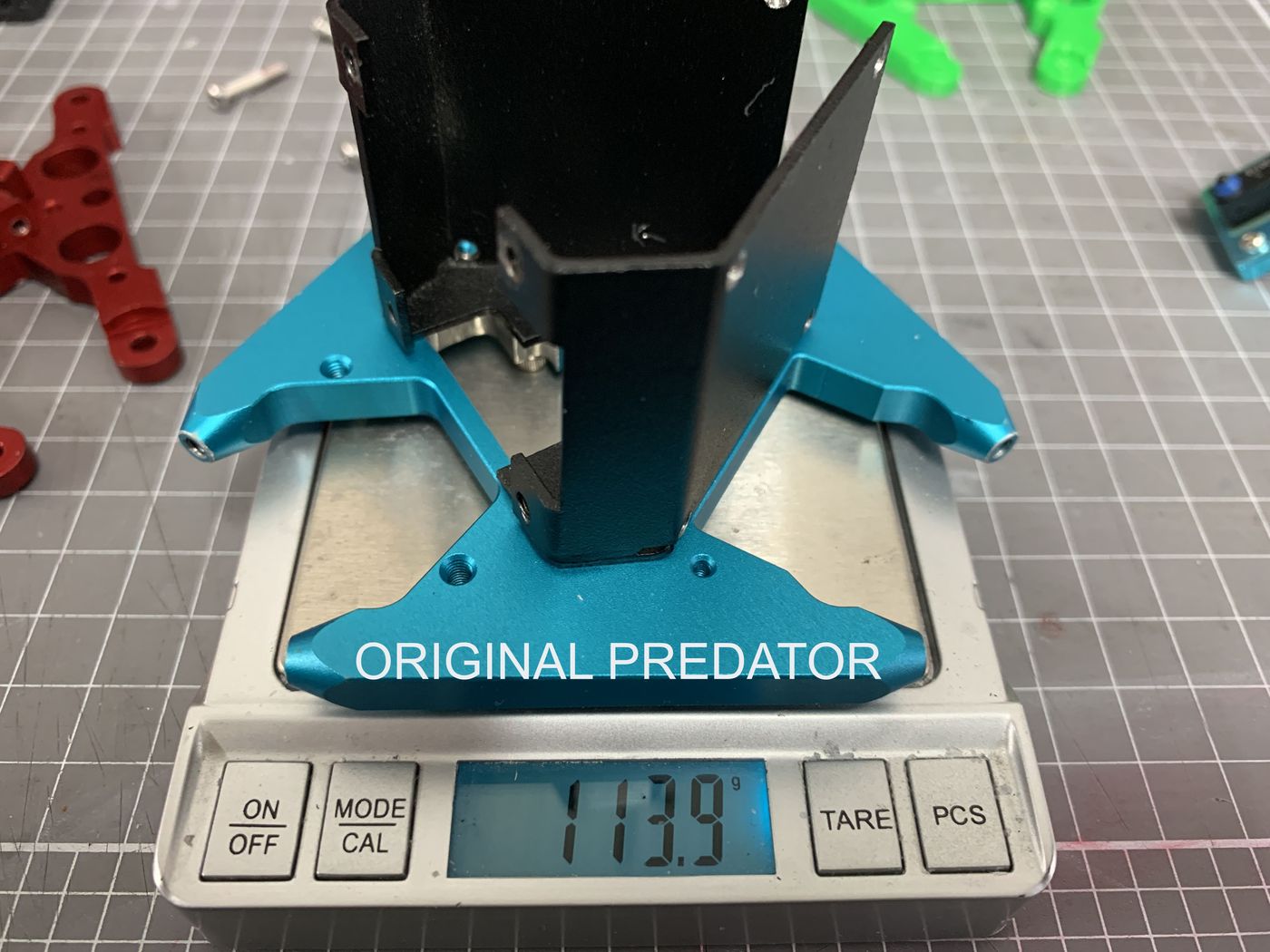

This page contains download links to all the still images, dimension drawings in various formats and .stl files of the main components for my ANYCUBIC Predator to mount a Clone Mosquito Hot End design. I have also included links to where I purchased some of the main components.

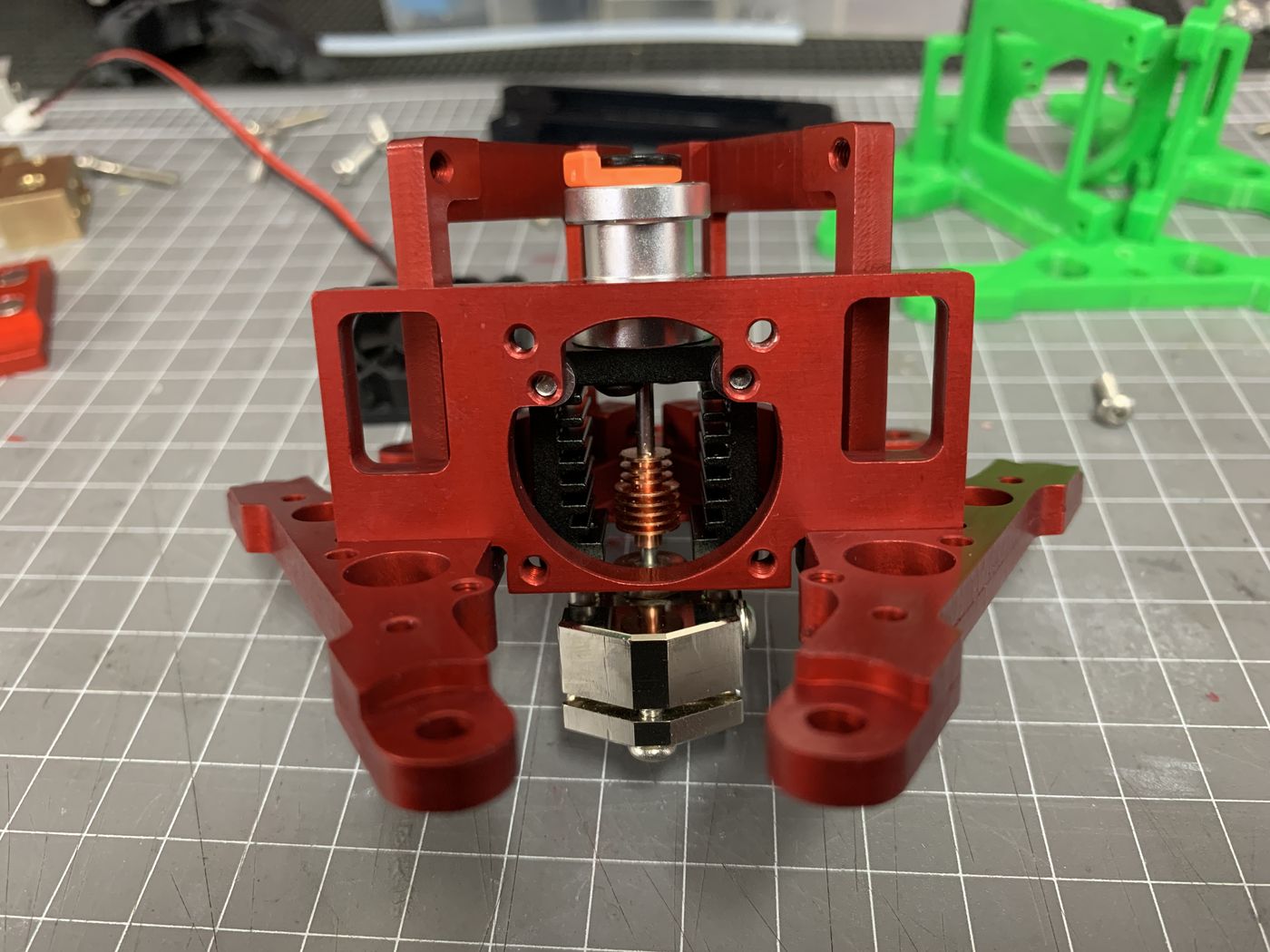

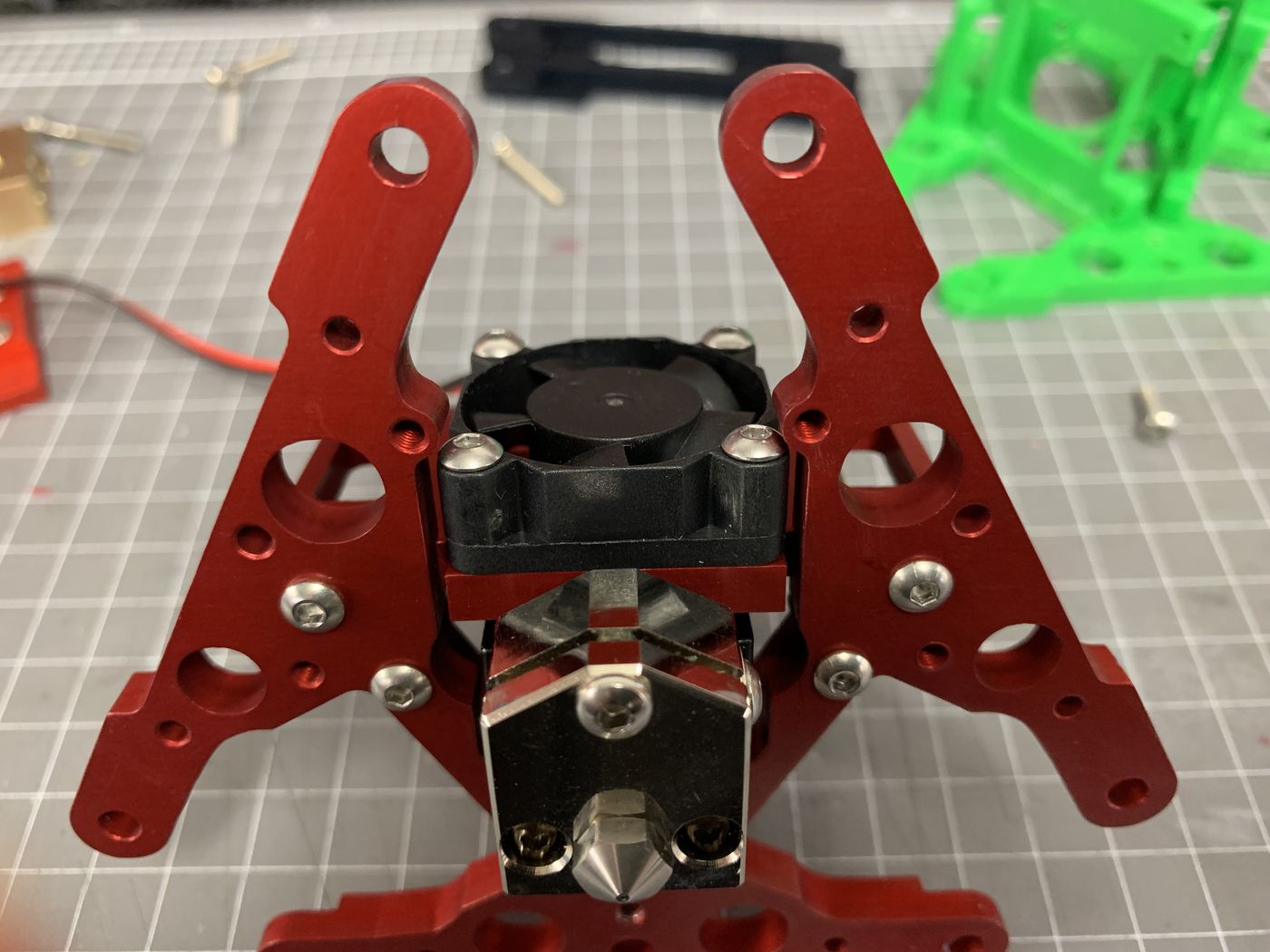

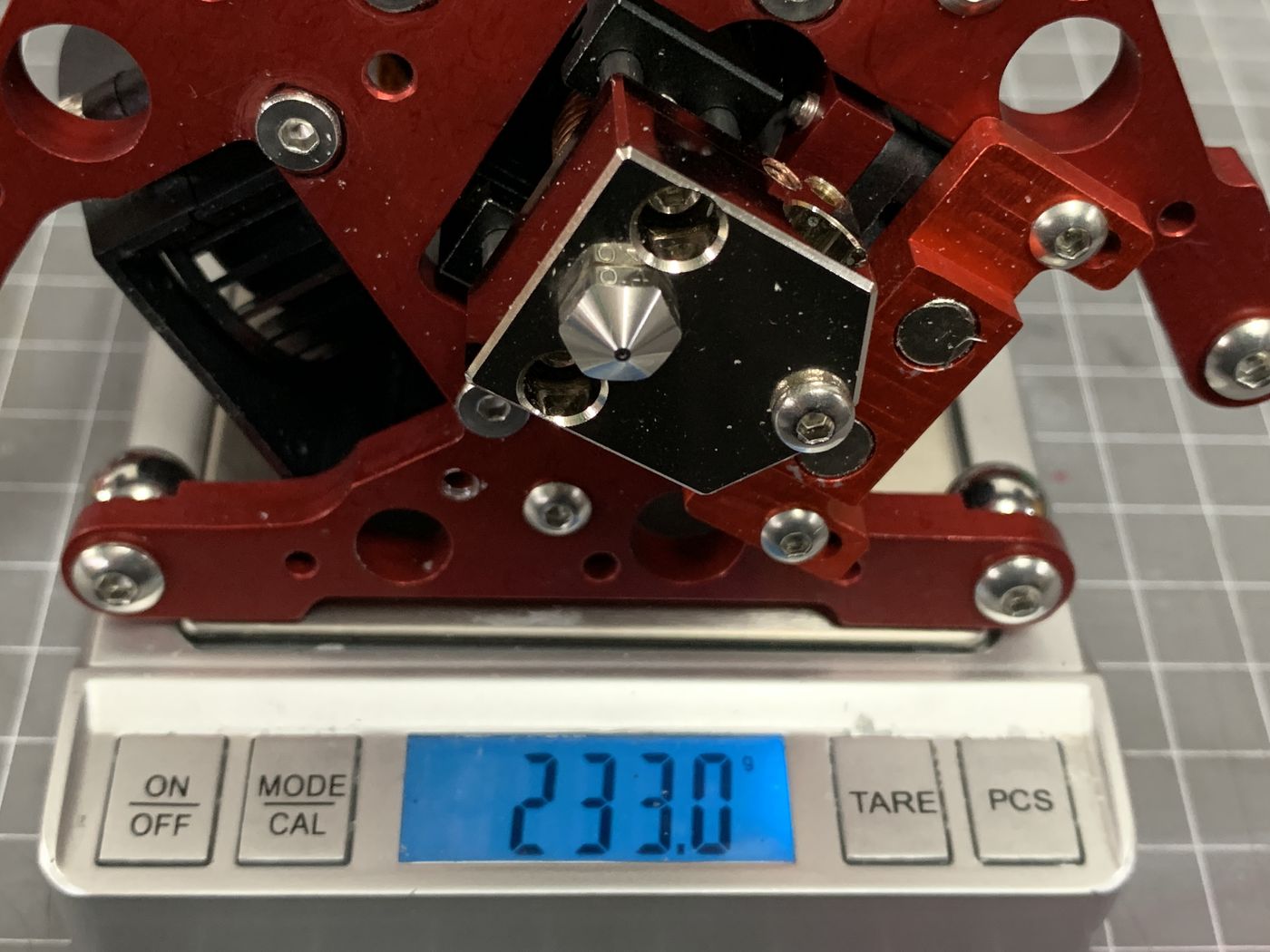

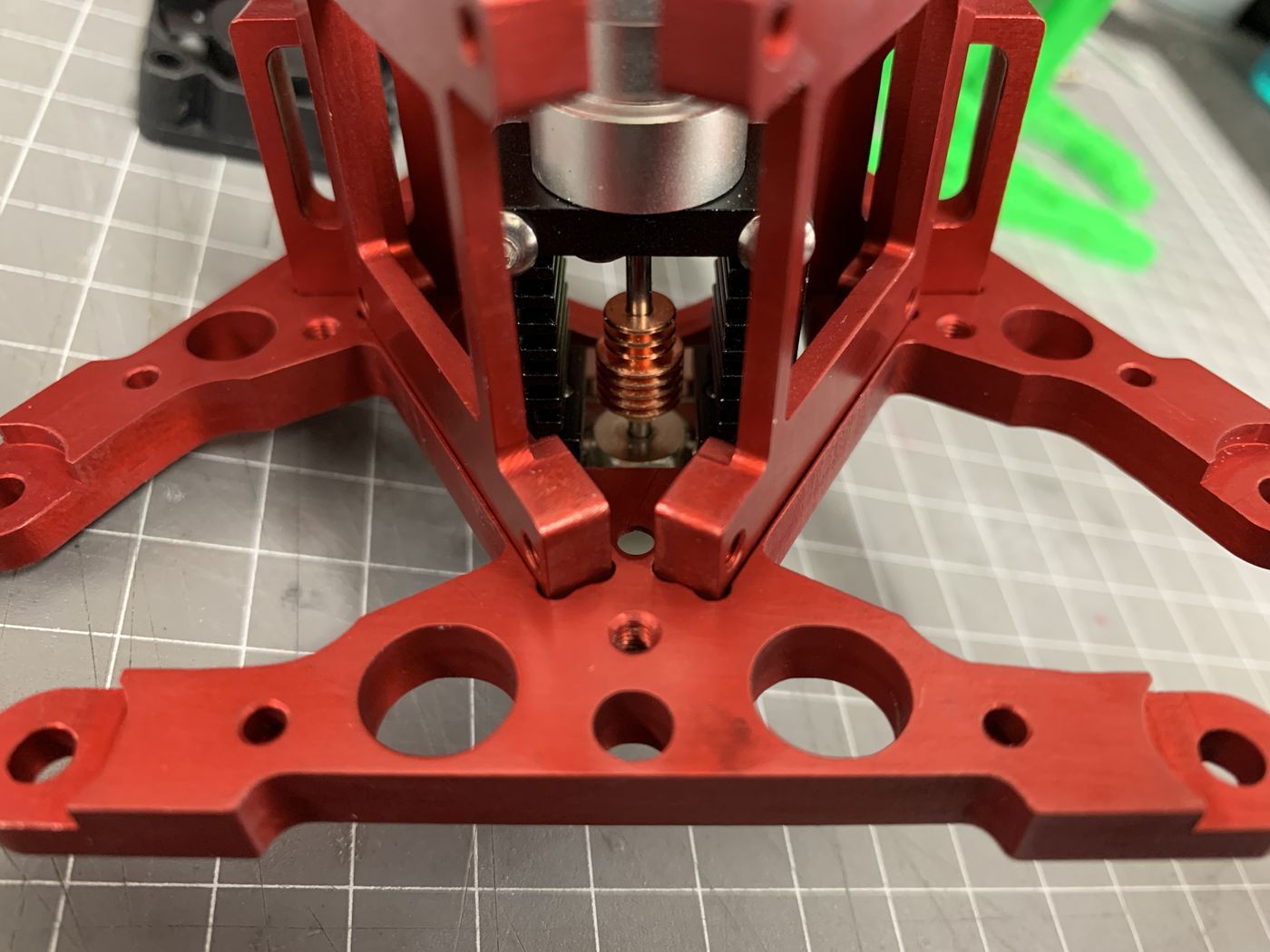

All the design CAD/CAM was created using Vectric Aspire as my intention was always to machine the main effector structure from Plate Aluminium.

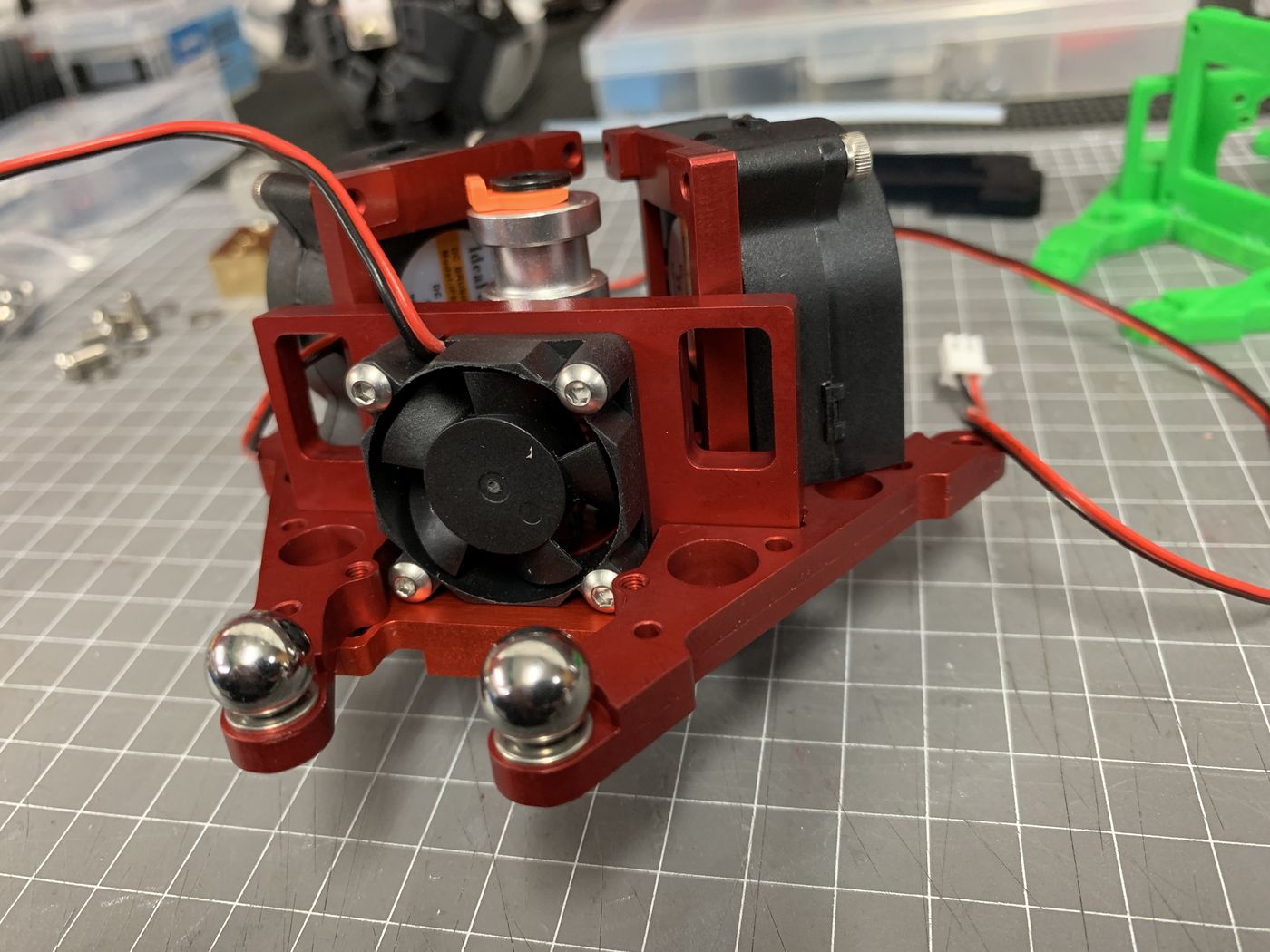

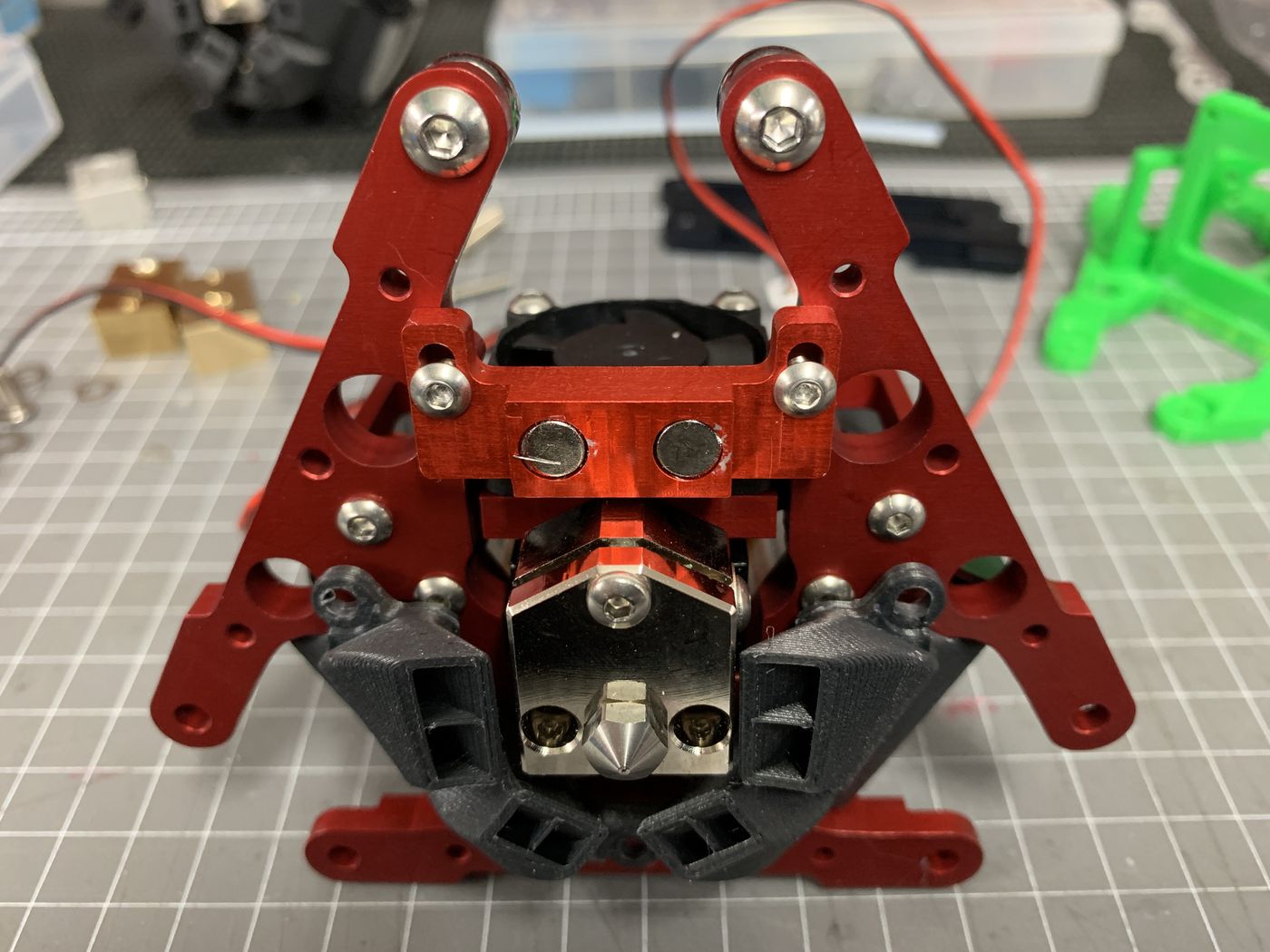

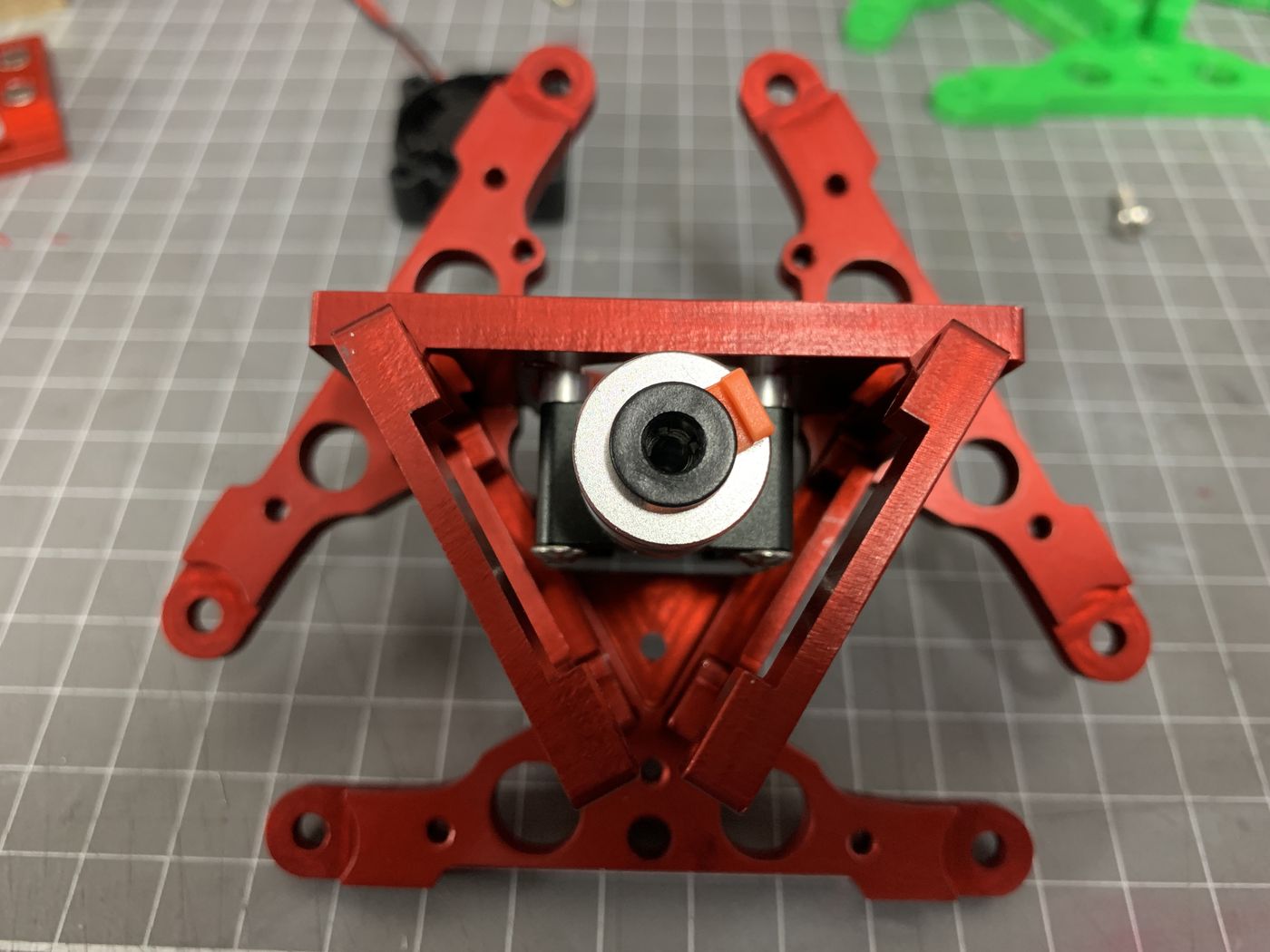

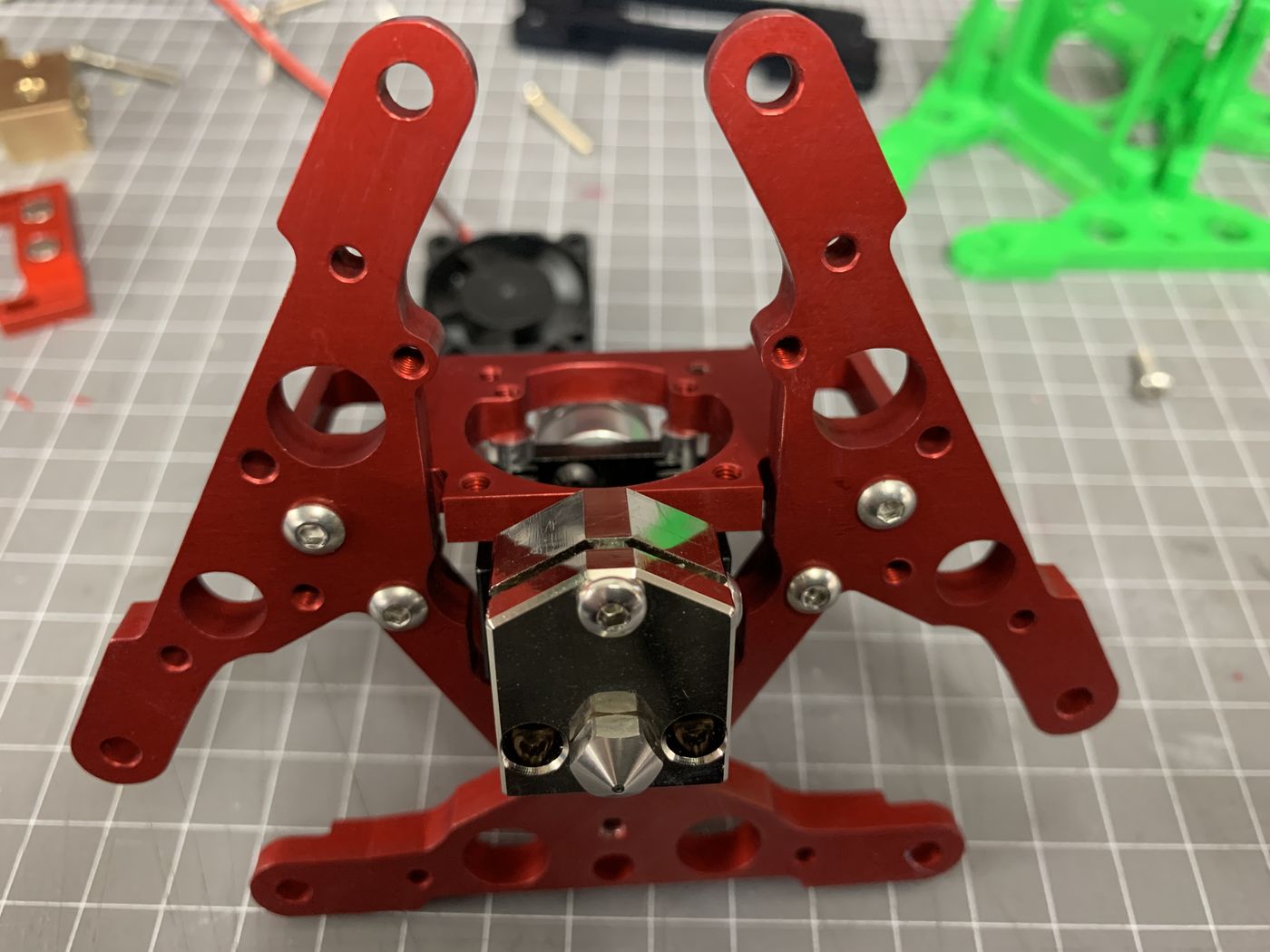

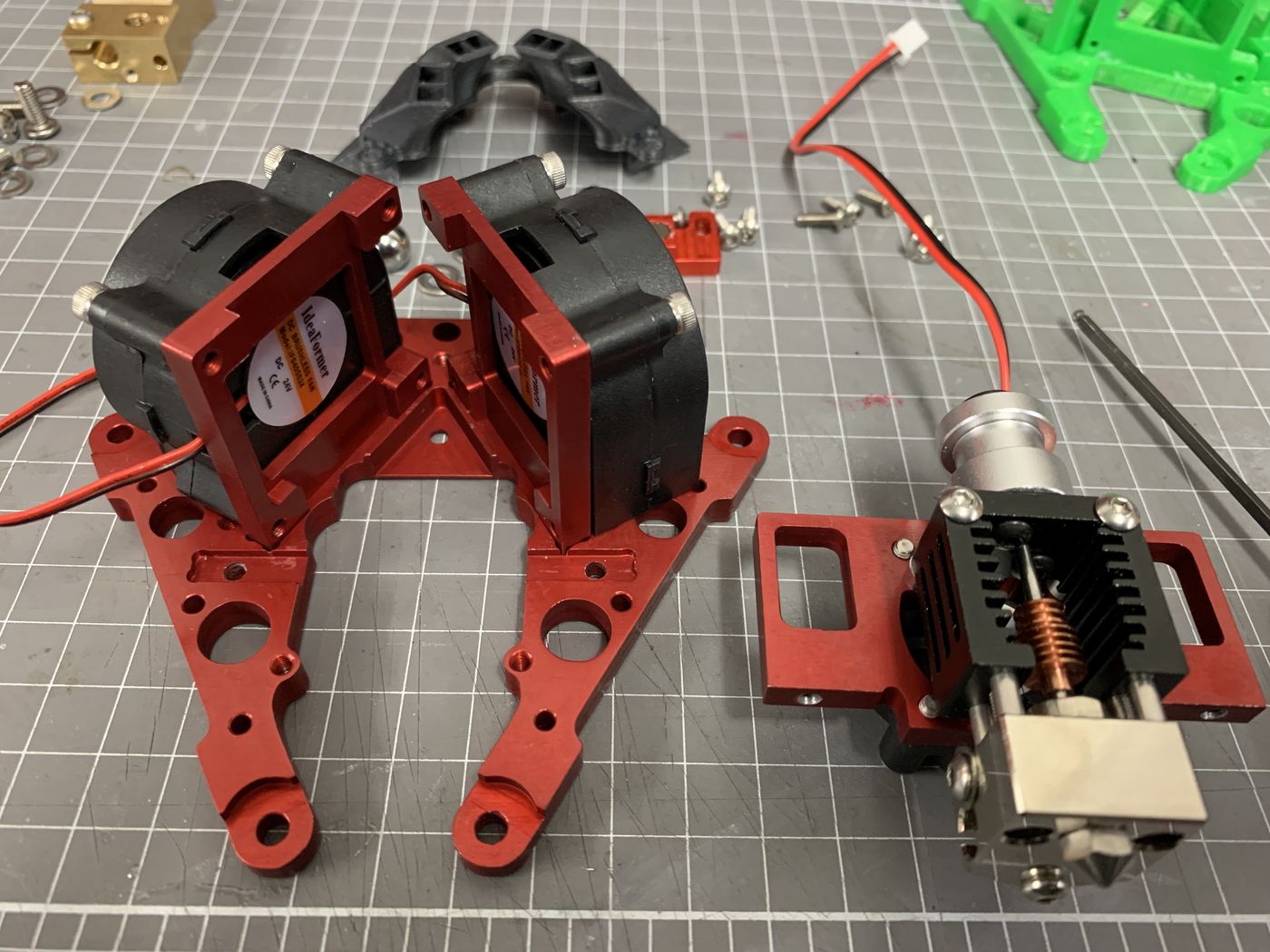

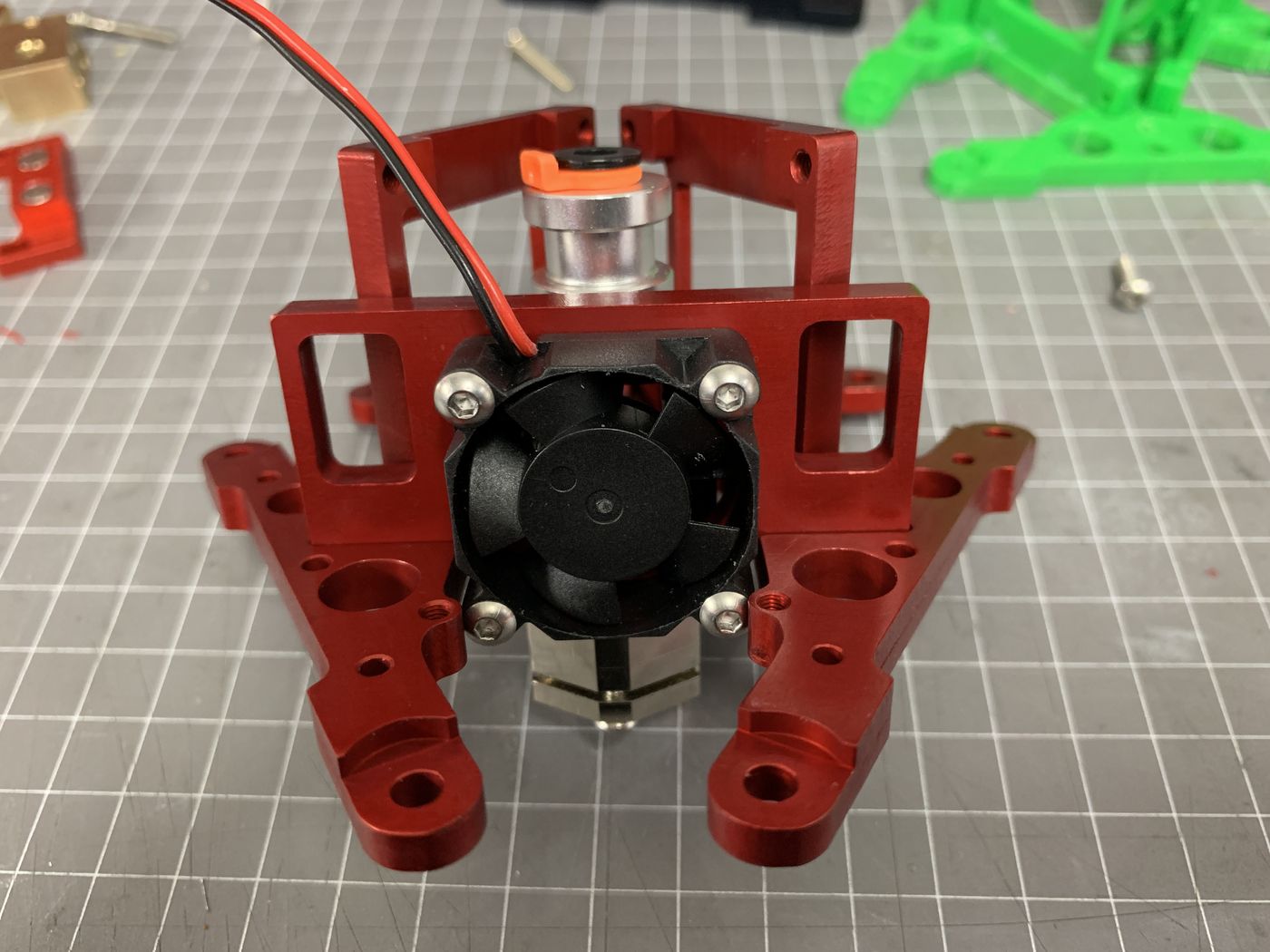

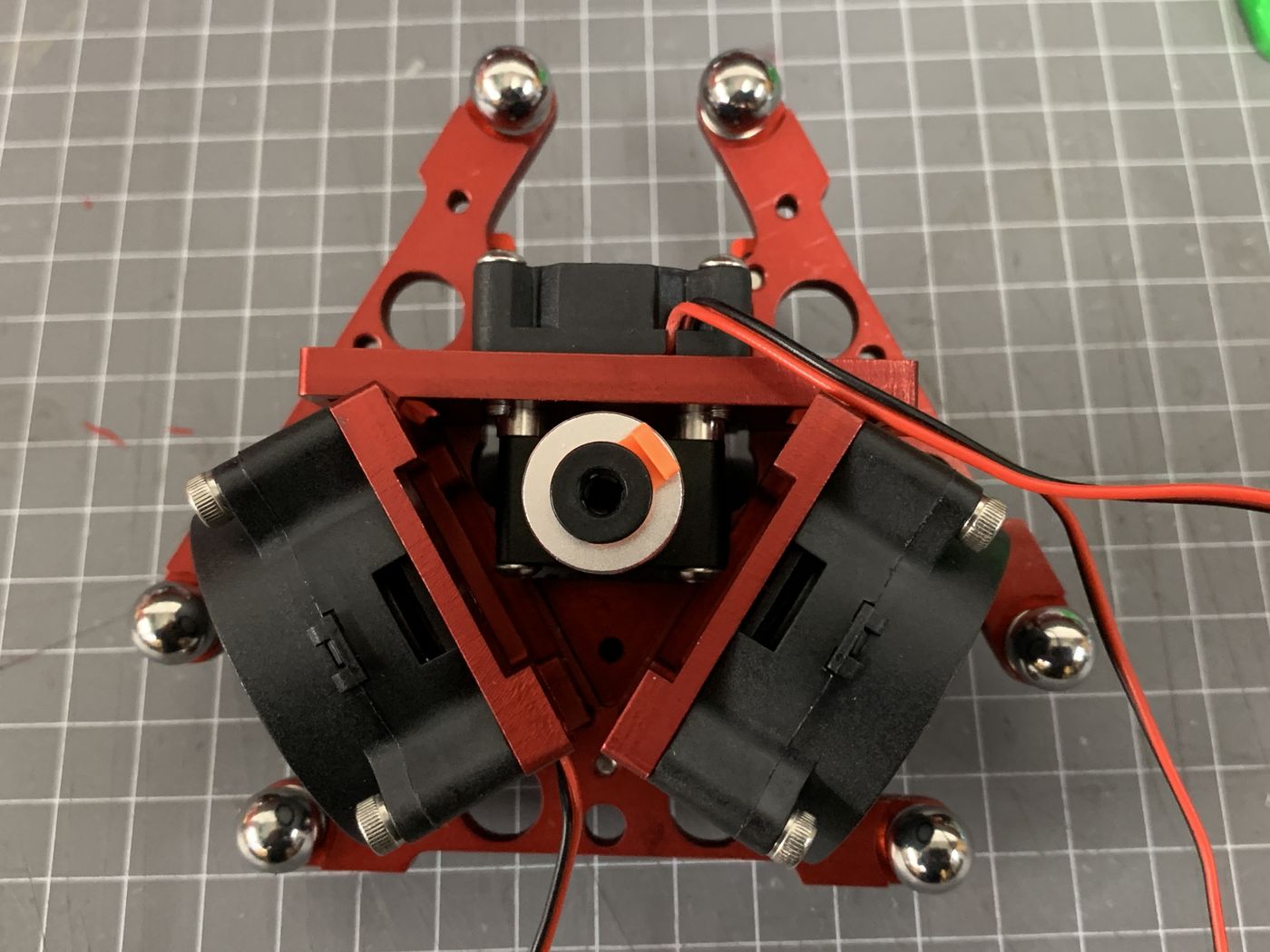

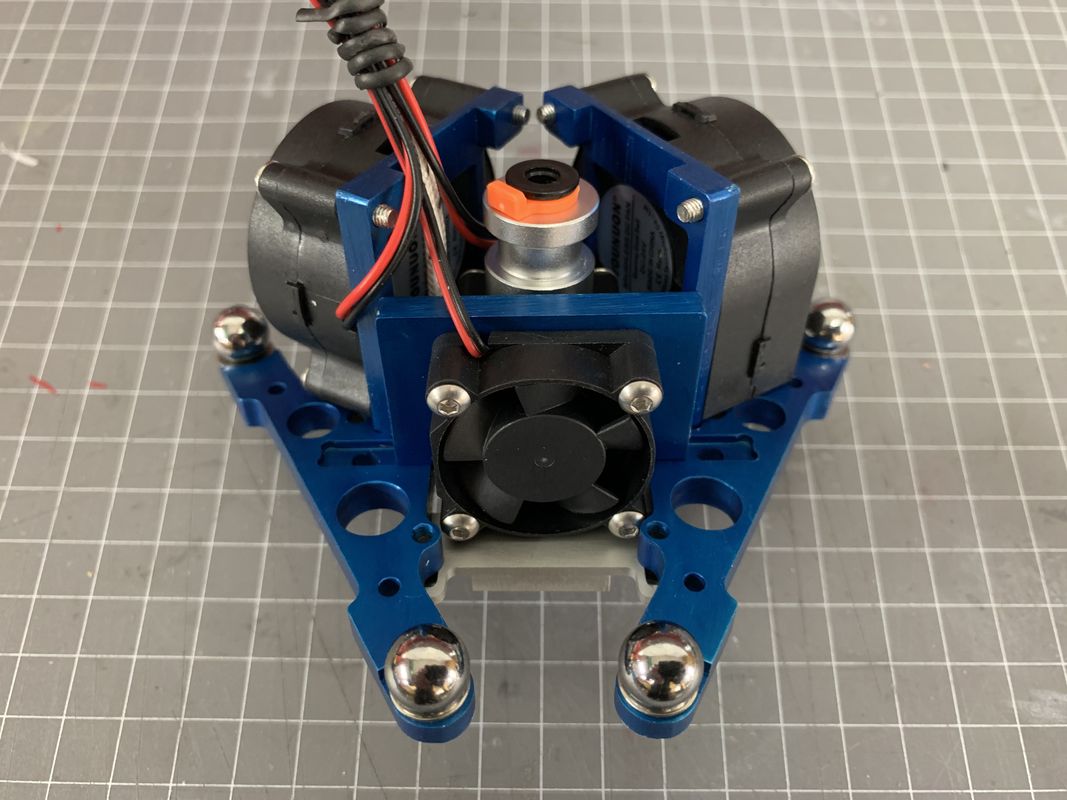

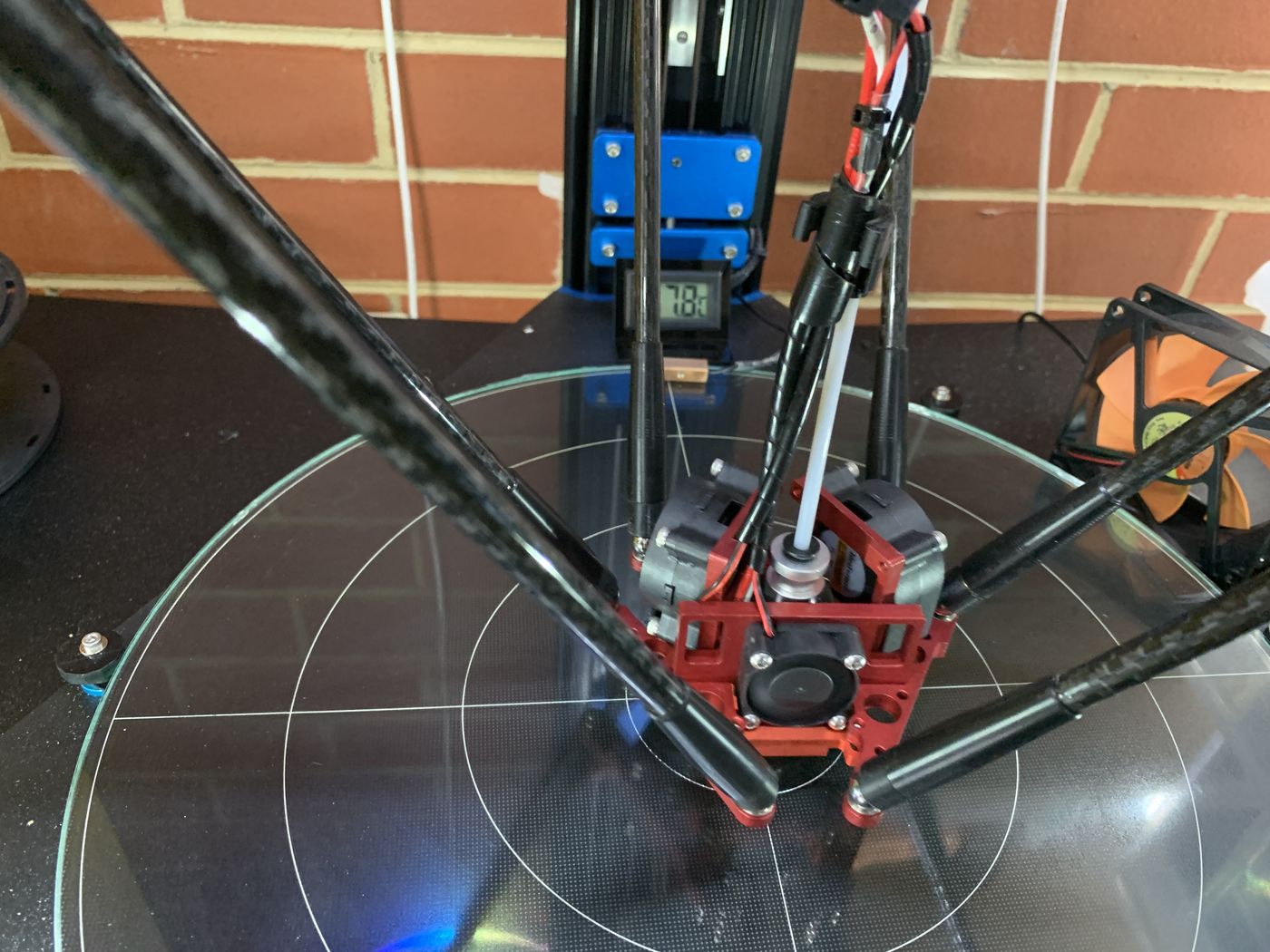

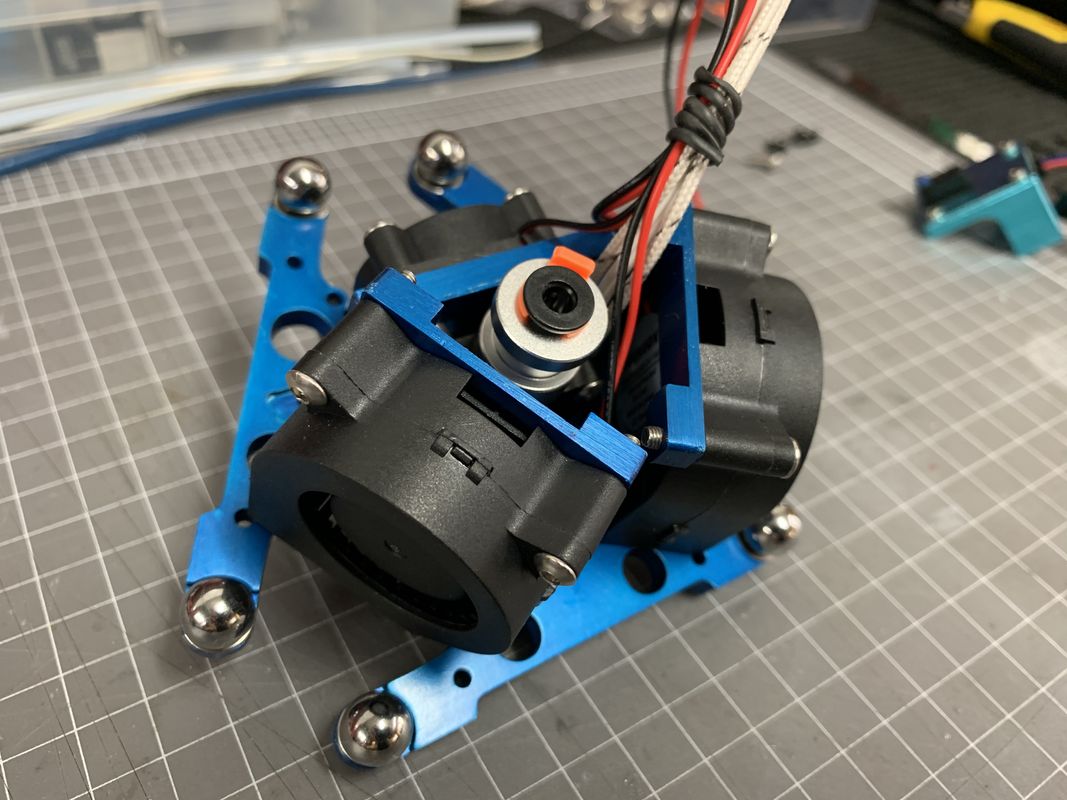

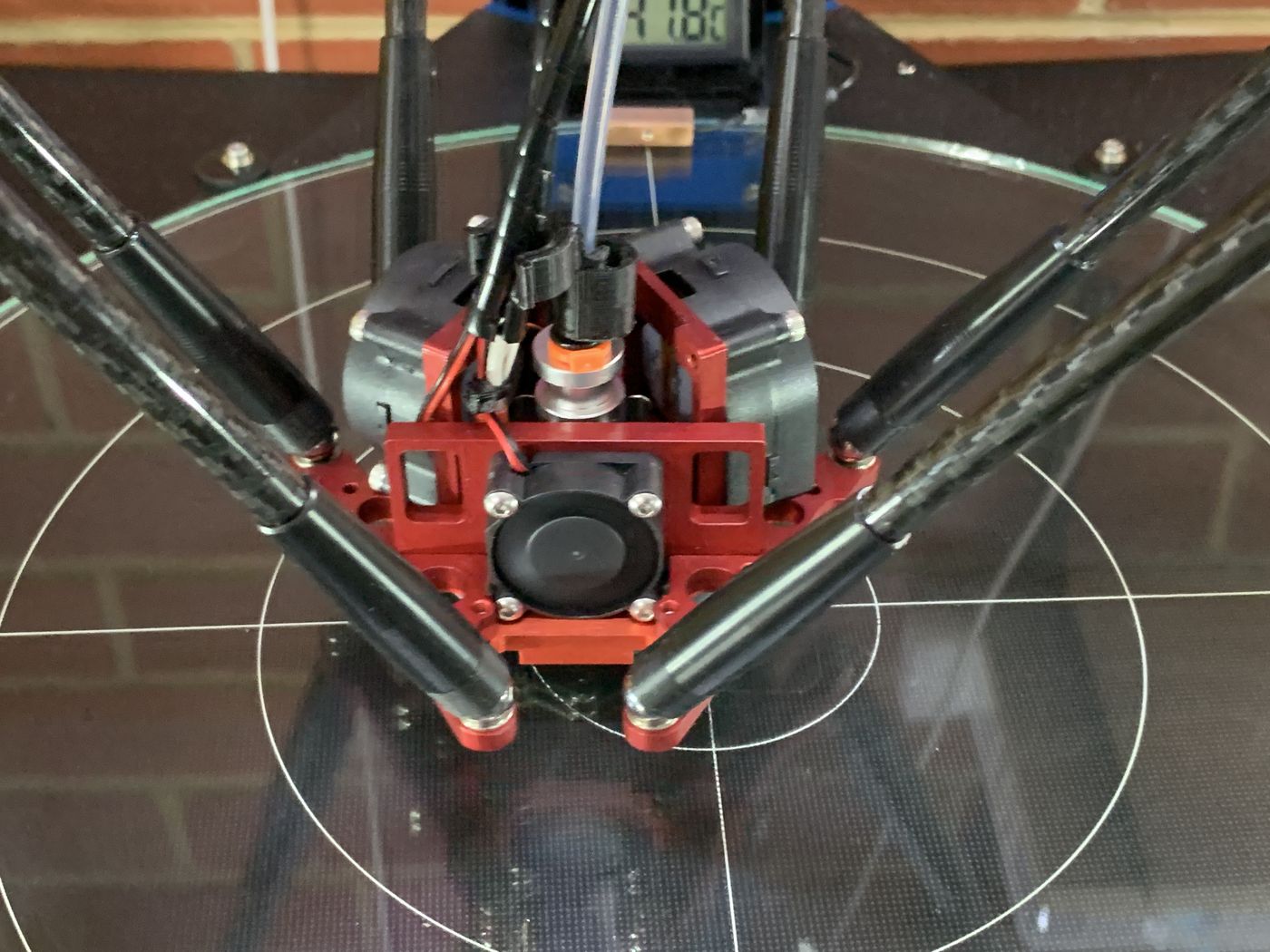

The .stl files were modelled and created using this same program, unfortunately Aspire does lack a little in the quality of its created .stl's. However this is only superficial regarding some surface finishing where as the accuracy is fine. Should anyone want the actual Aspire files please ask me via the Contact Me form link on the home page. Anodizing I do myself with my home setup, its not always perfect but it does a reasonable job. Since making the red effector featured I have also made second that I anodized blue. This was to verify some design changes incorporated after doing the first one.

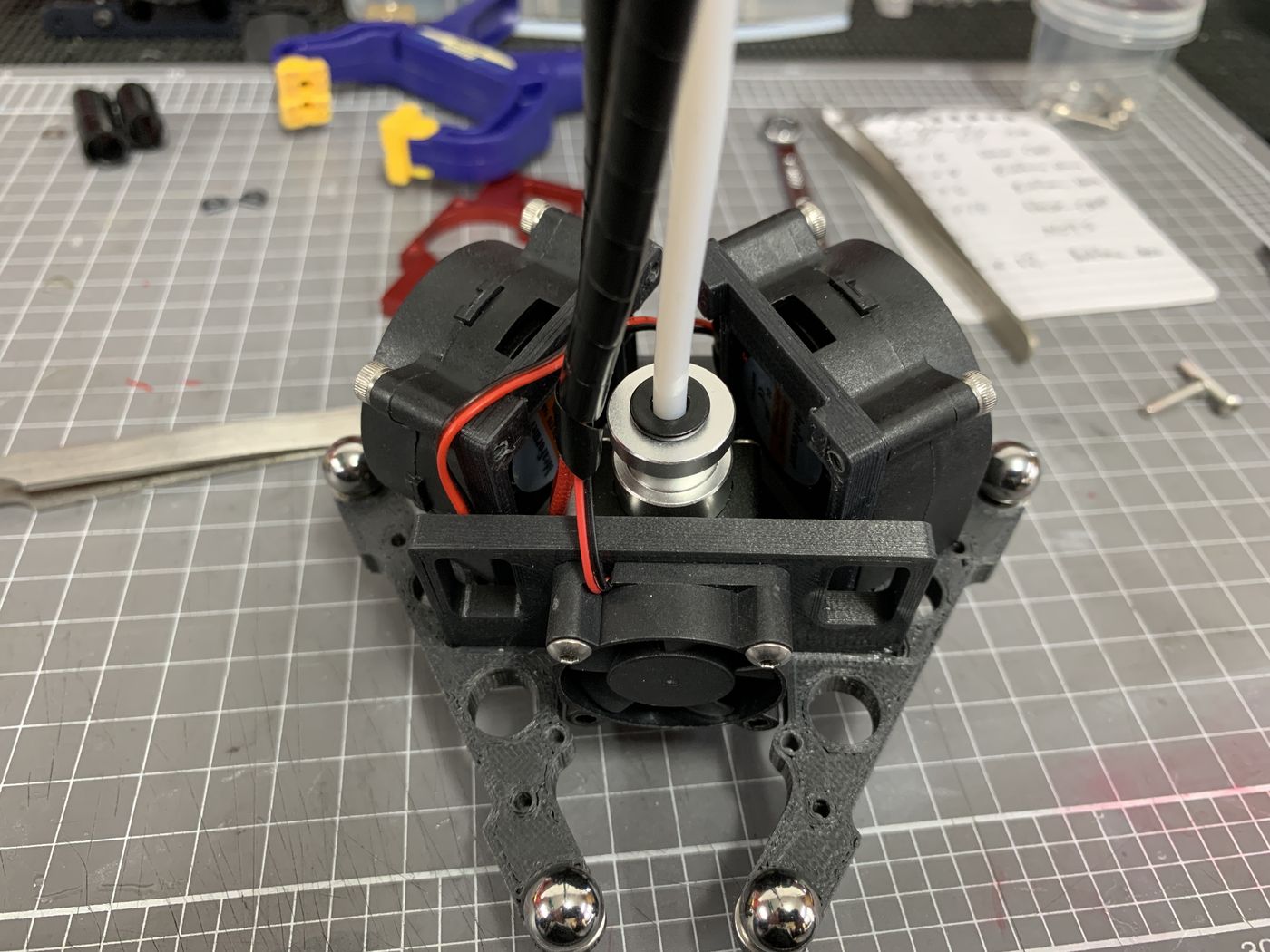

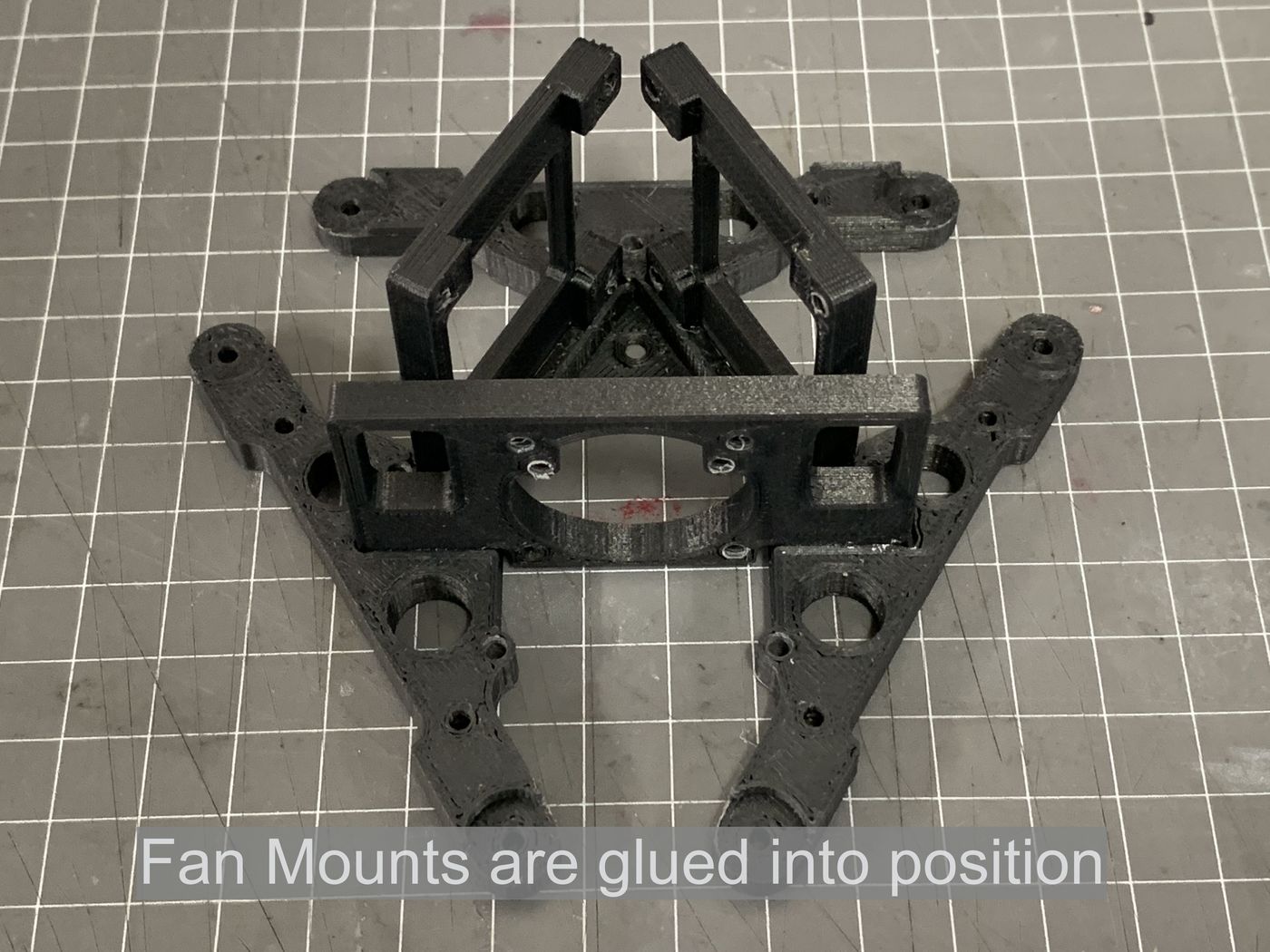

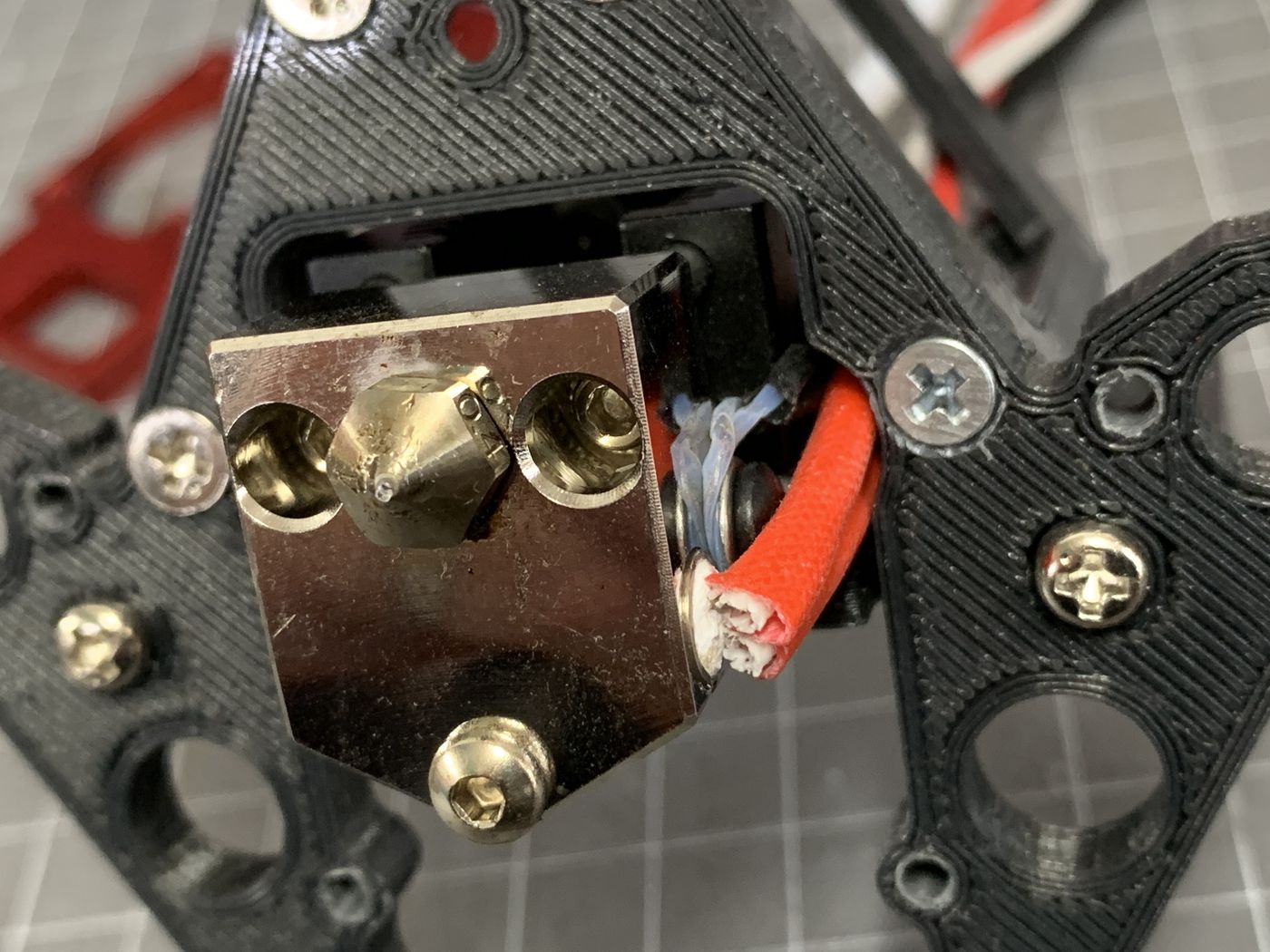

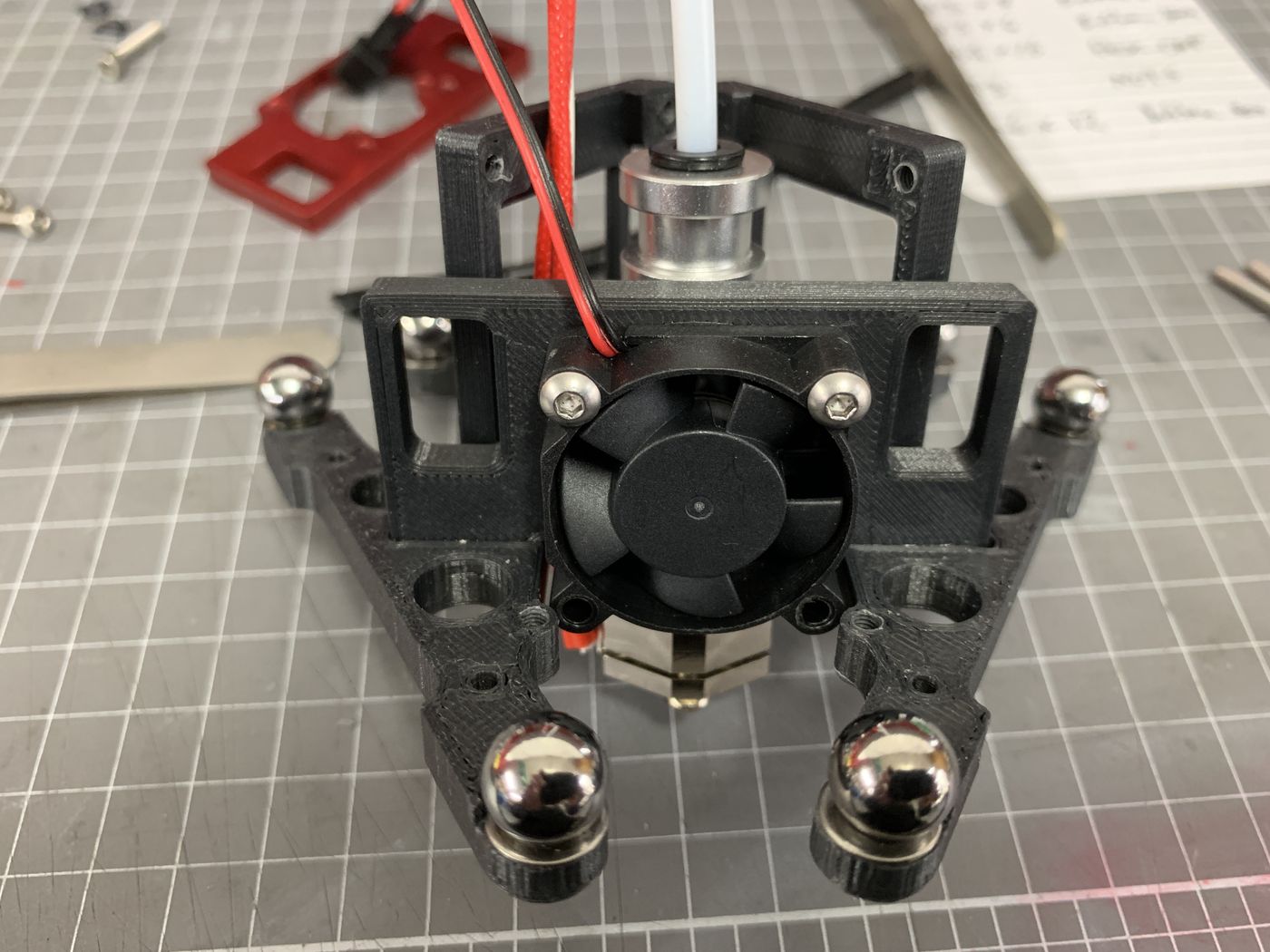

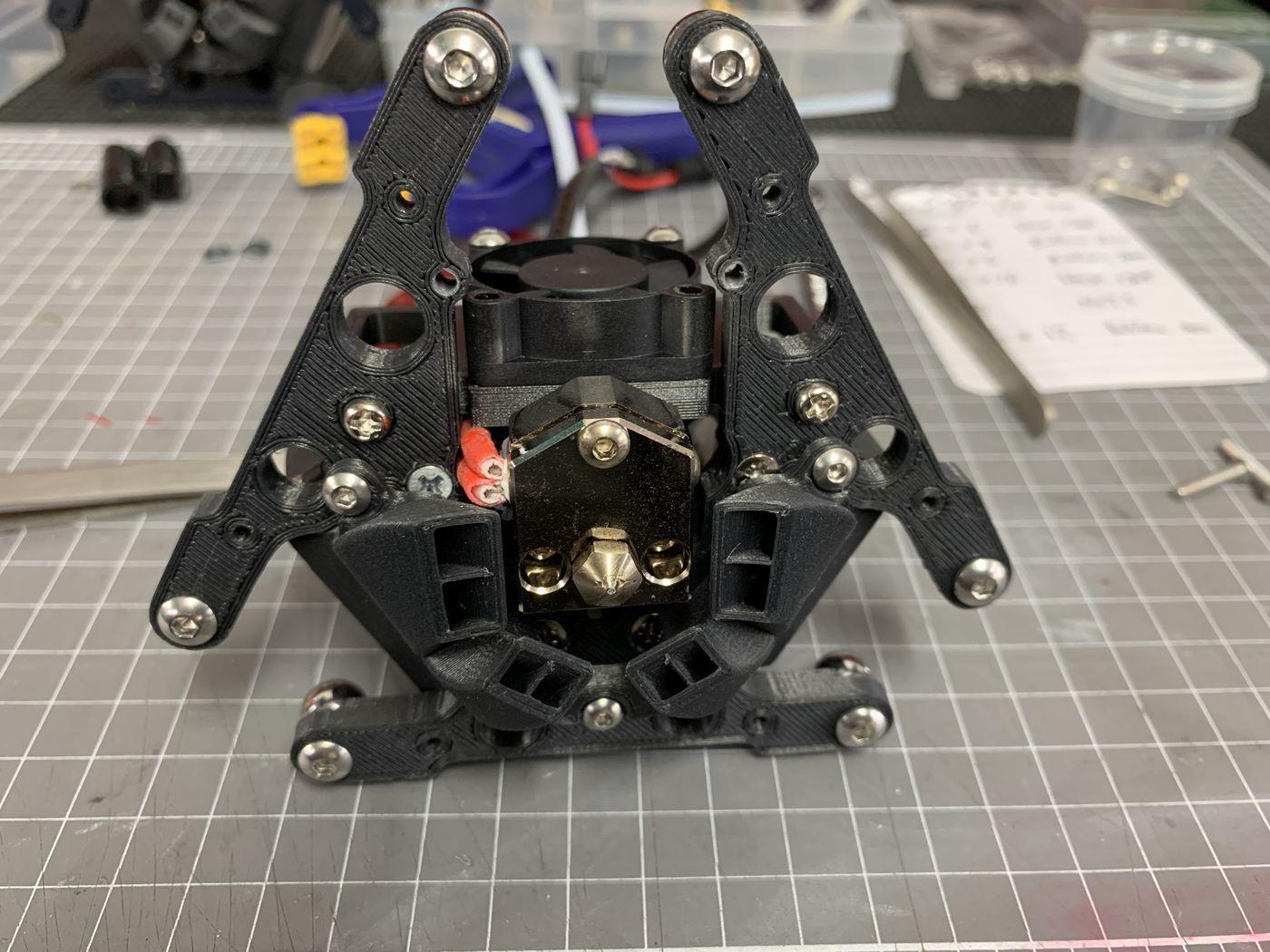

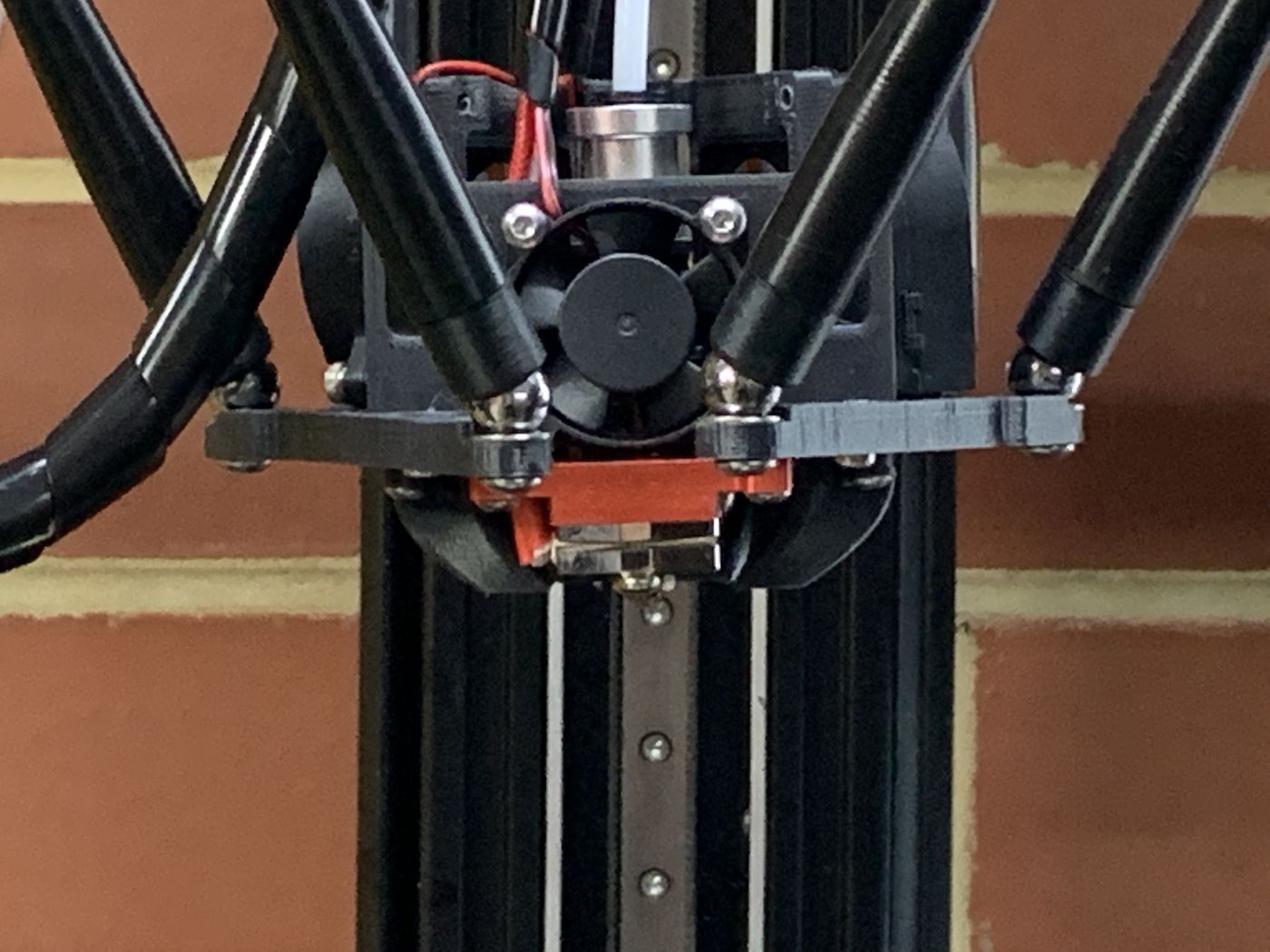

As for the printed version, even though the Fan Supports are glued to the Effector plate all the other mounting holes for the fans and HotEnd I taped M3 to make assembly for testing easy. So as these threads would easily strip, care should be taken to only use what pressure is absolutely needed to hold the parts in place. As to the long term viability of doing it this way that would that I would not recommend. Honestly I provide the .stl files for a printed version for reference only as they are derived from the original CNC files and are of very average quality. I may provide files and more information on the Version 2 effector in the not too distant future when time permits.
All the design CAD/CAM was created using Vectric Aspire as my intention was always to machine the main effector structure from Plate Aluminium.
The .stl files were modelled and created using this same program, unfortunately Aspire does lack a little in the quality of its created .stl's. However this is only superficial regarding some surface finishing where as the accuracy is fine. Should anyone want the actual Aspire files please ask me via the Contact Me form link on the home page. Anodizing I do myself with my home setup, its not always perfect but it does a reasonable job. Since making the red effector featured I have also made second that I anodized blue. This was to verify some design changes incorporated after doing the first one.
As for the printed version, even though the Fan Supports are glued to the Effector plate all the other mounting holes for the fans and HotEnd I taped M3 to make assembly for testing easy. So as these threads would easily strip, care should be taken to only use what pressure is absolutely needed to hold the parts in place. As to the long term viability of doing it this way that would that I would not recommend. Honestly I provide the .stl files for a printed version for reference only as they are derived from the original CNC files and are of very average quality. I may provide files and more information on the Version 2 effector in the not too distant future when time permits.
Please note that all the information and downloads provided on this page are intended for personal use only.
If you intend to use any of this information for commercial purposes please contact me for authority before doing so.
If you intend to use any of this information for commercial purposes please contact me for authority before doing so.
Page Created
November 6, 2020
November 6, 2020
DOWNLOADS
Effector File Collection (.stl)
Version-1 Clone Mosquito Effector
Click an Image for a larger view
Updated: Feb 26, 2021
I don't have links for some of hardware materials as such as the screws as I purchased these directly from local suppliers that sell nuts, bolts and screws etc.
These can be Stainless Steel (as I use), Brass or Nickel plated steel. Hex head or Philips Head.
The items such as fans, connectors, heater cartridge etc are very standard and available from many on-line stores such as AliExpress and eBay.
Links to components such as the Clone Mosquito hot end and other items I find that these are constantly changing and its not possible to maintain them.
These can be Stainless Steel (as I use), Brass or Nickel plated steel. Hex head or Philips Head.
The items such as fans, connectors, heater cartridge etc are very standard and available from many on-line stores such as AliExpress and eBay.
Links to components such as the Clone Mosquito hot end and other items I find that these are constantly changing and its not possible to maintain them.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

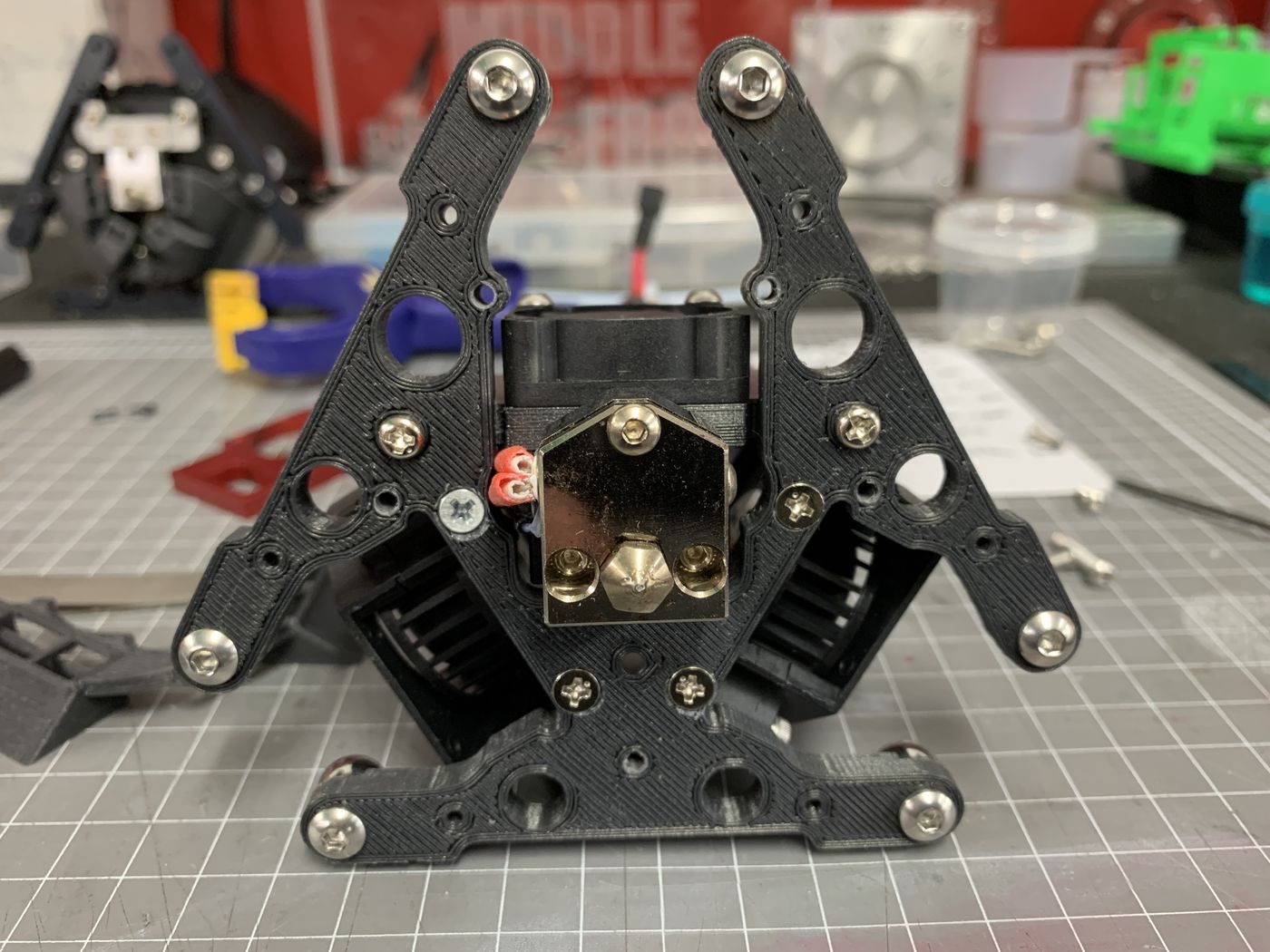

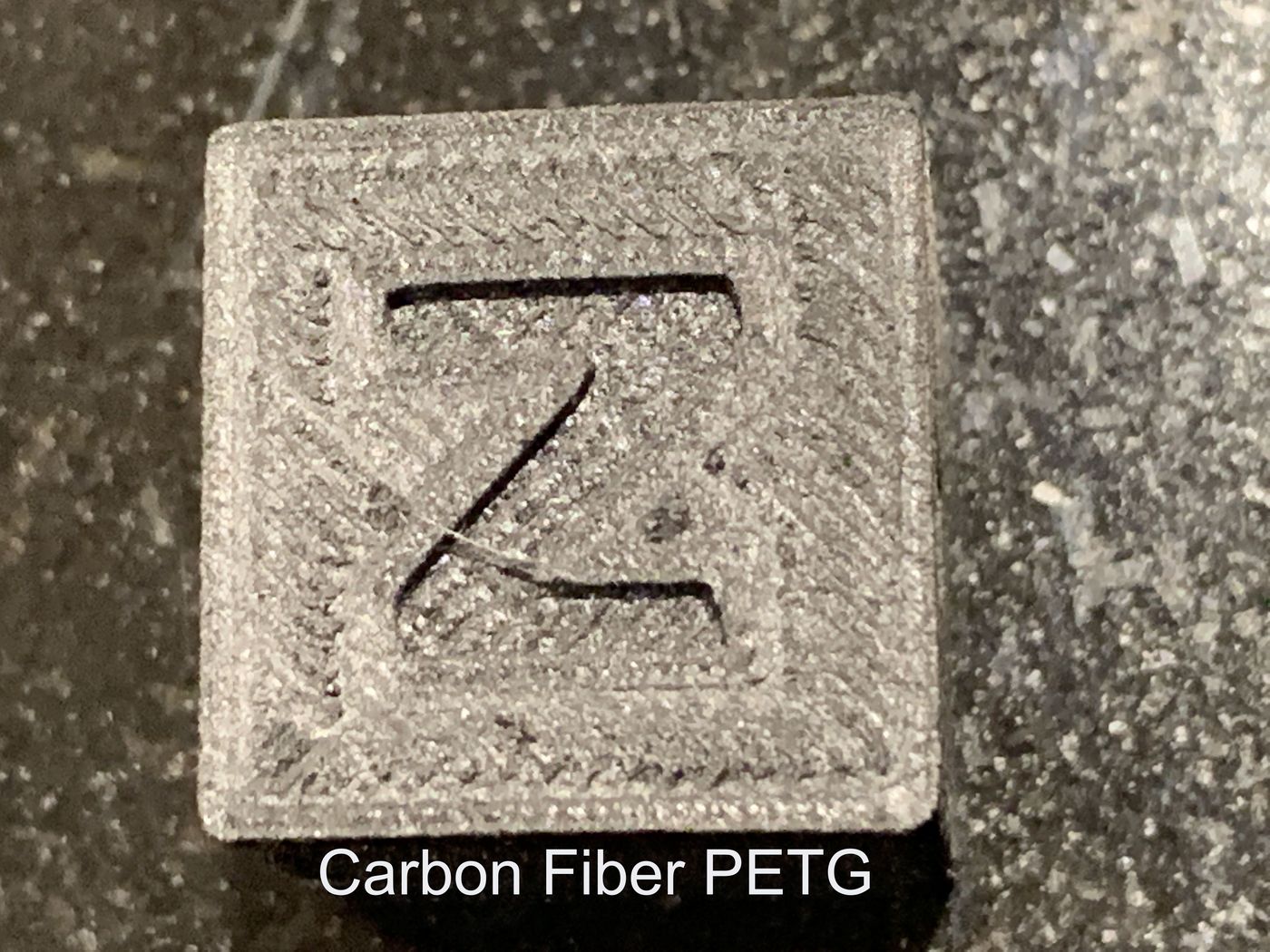

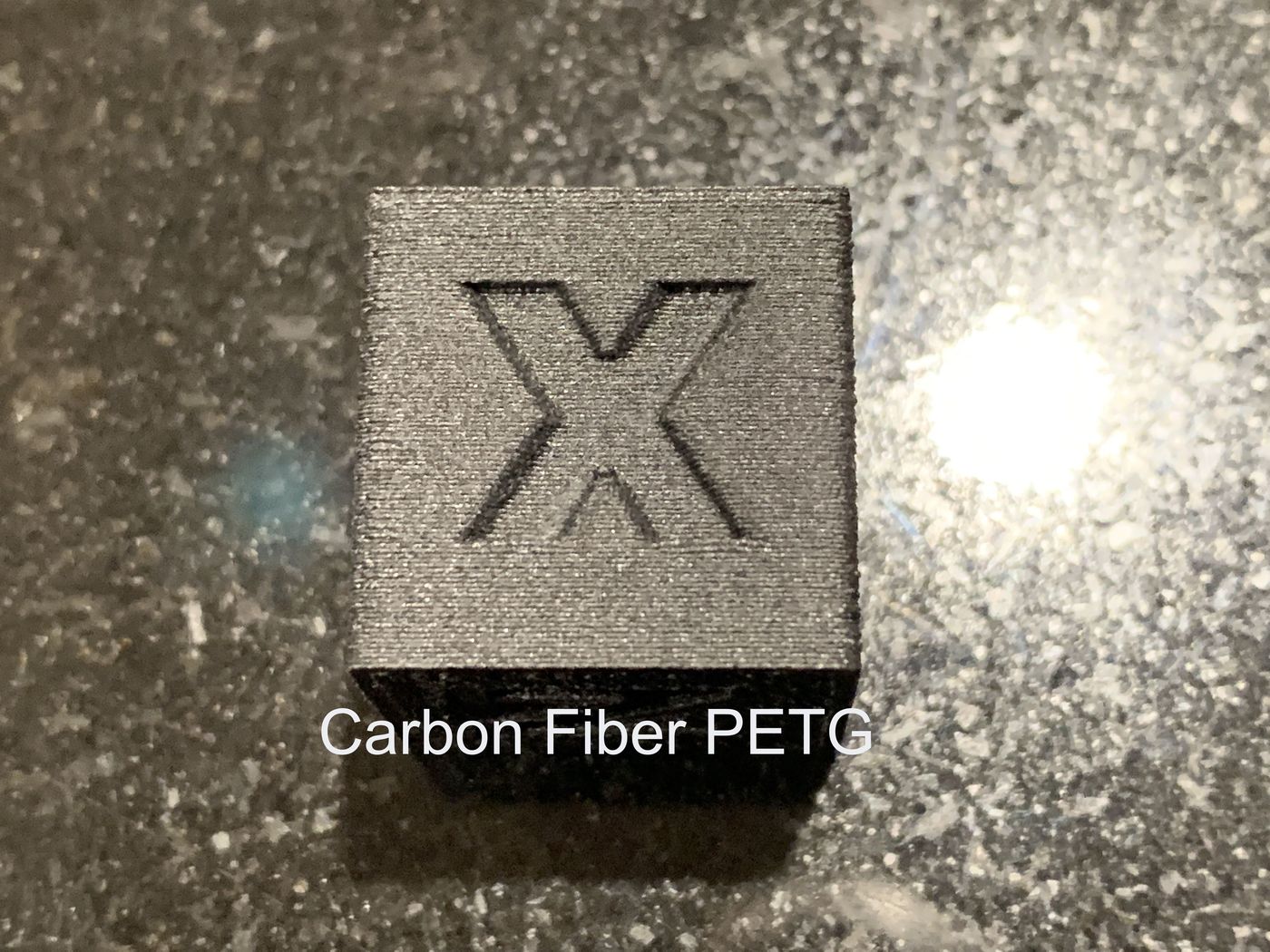

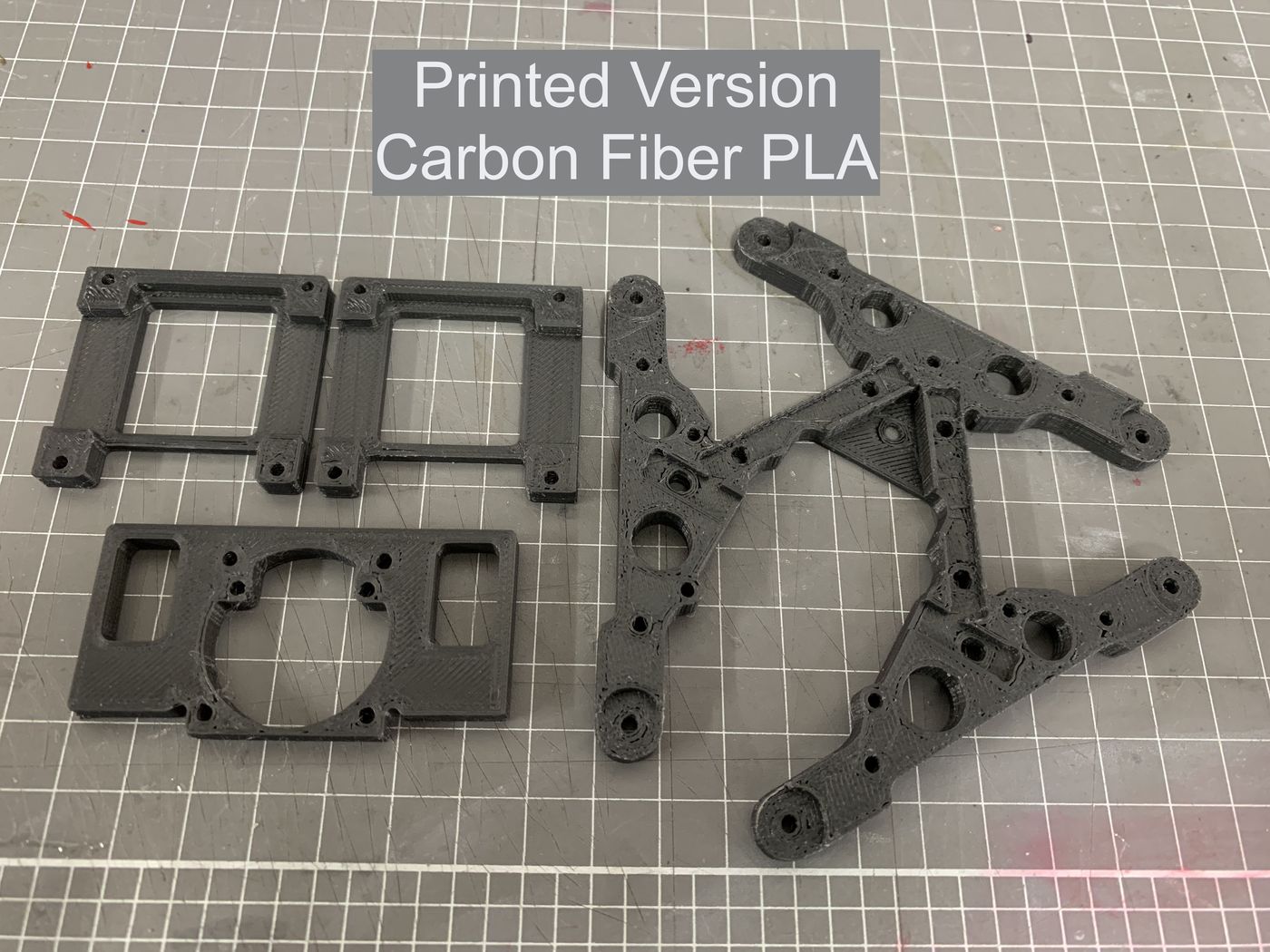

PRINTED VERSION - Carbon Fiber PLA

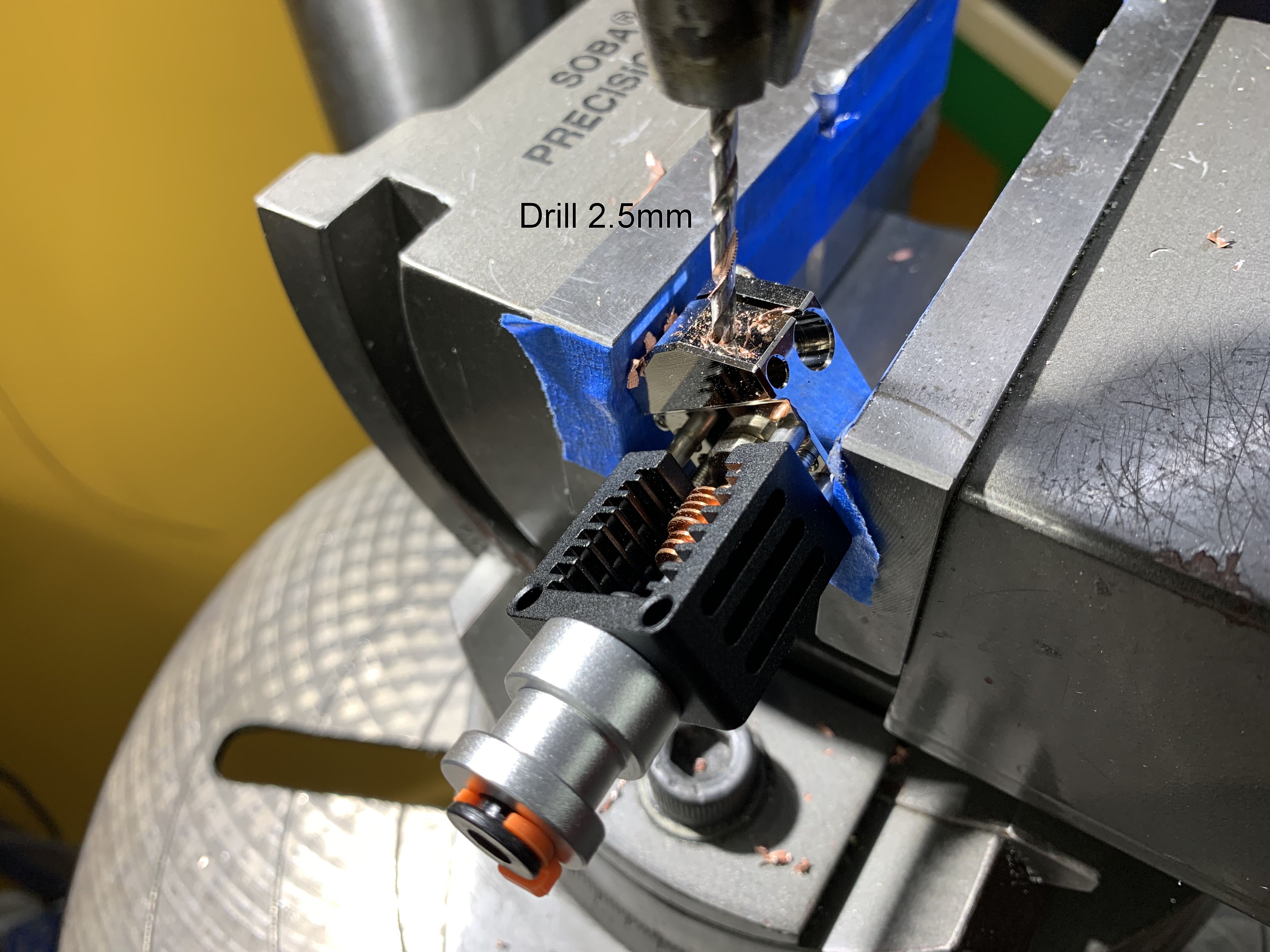

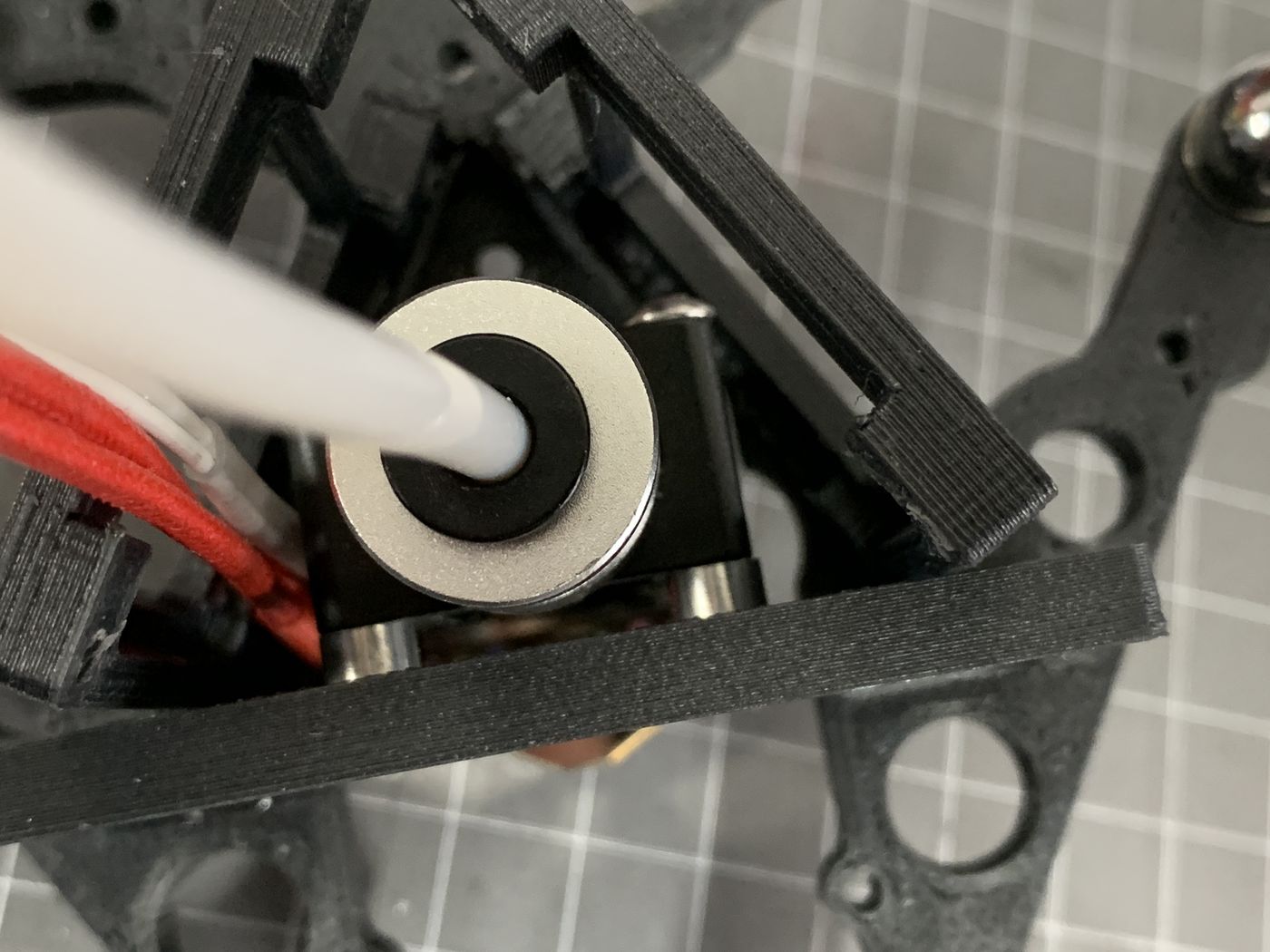

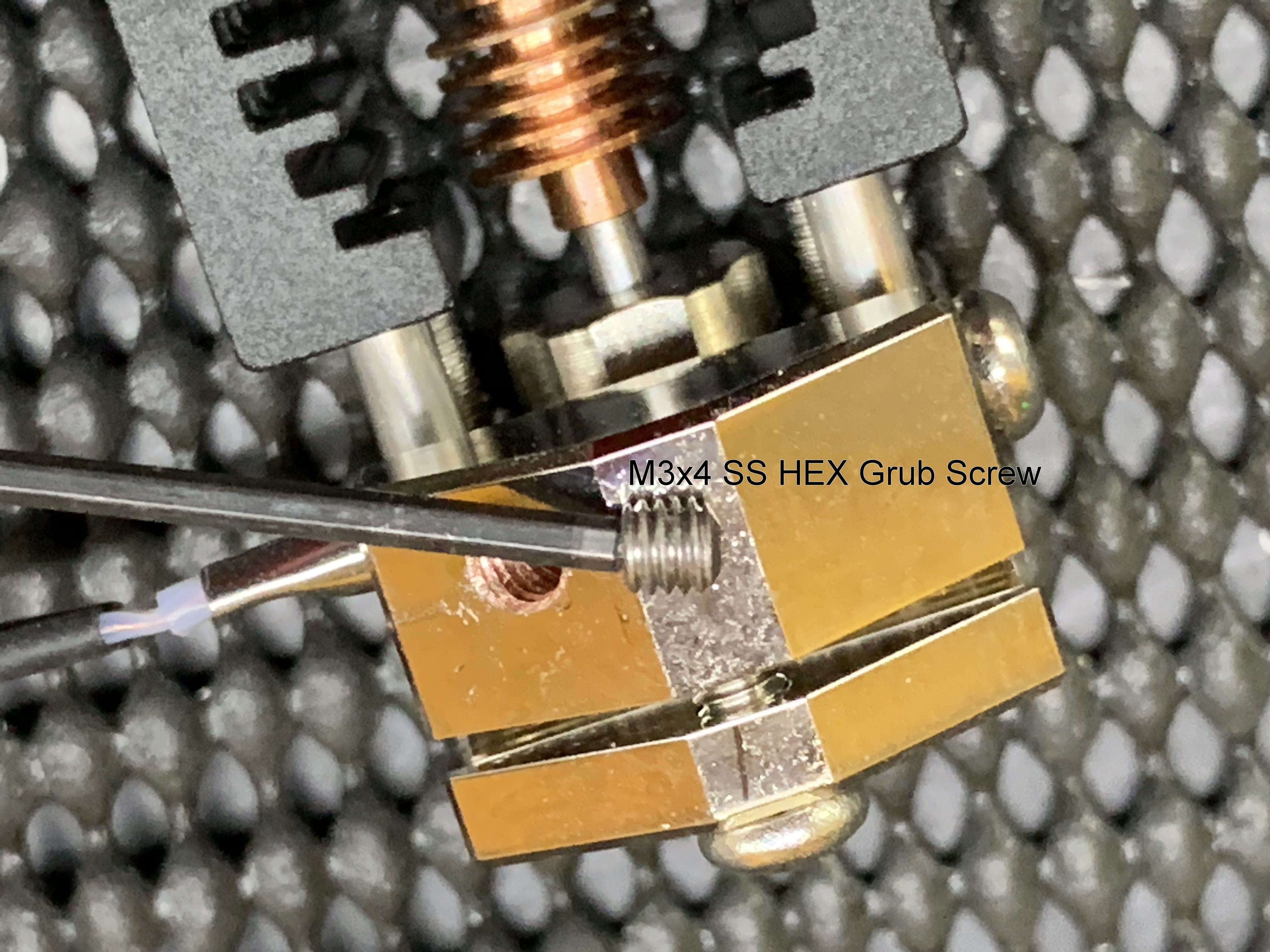

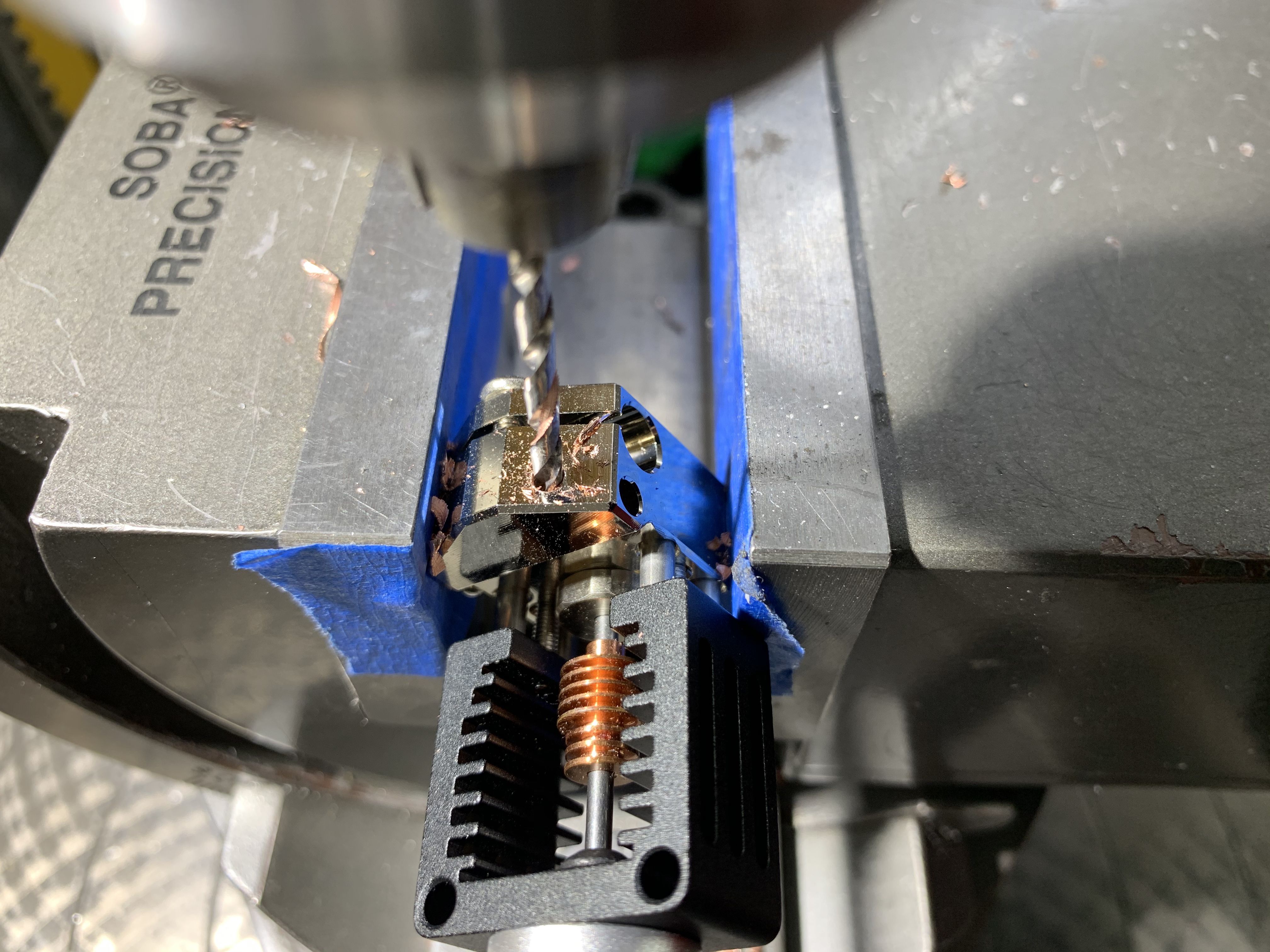

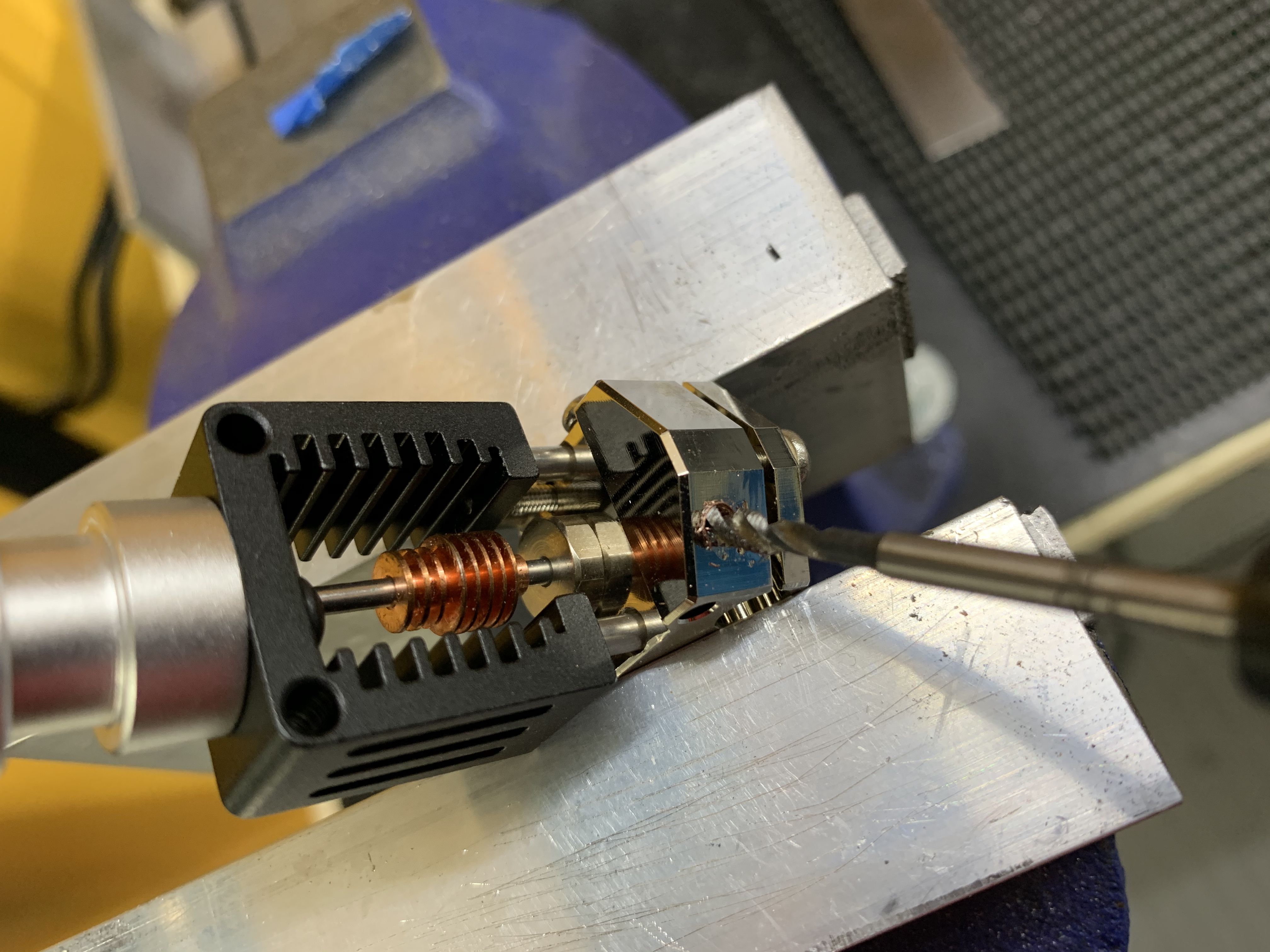

Parts and Screw details plus Hot End Thermister securing modification.
Photos Collection (.jpg)
Dimensions and Drawings Collection. (.pdf, .eps, .spg etc)
Main Components List

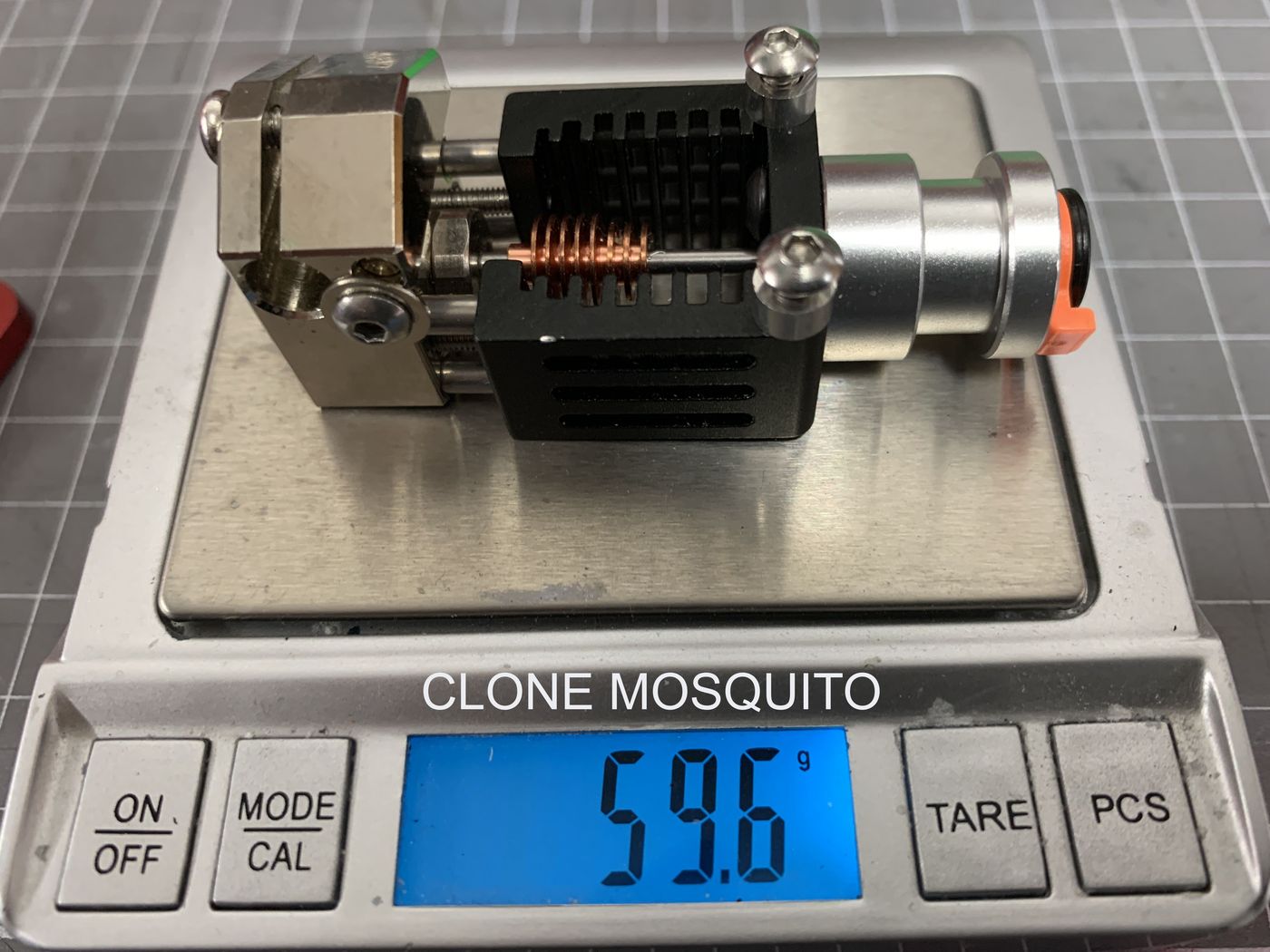

Clone Mosquito Hot End (Complete)
Heater Cartridge 24V 50W
Thermistor (3mm Tube style or whatever suits the Clone Hot End)
30x30x10 24VDC Fan
40x40x10 24VDC Part Cooling Fans X2 or 40x40x5 Part Cooling Fans x2
JST SM2.54 Connectors x5
Screws & Hardware:
(The screw head type is only a suggestion)
M3x16 HEX CAP Screws x6 (for 40x40x10 24VDC Part Cooling Fans)
M3x20 HEX Button Head Screws
M3x16 HEX Button Head Screws x2 (4 Recommended)
Spacers 3mmID 6mmOD x3mmL Nylon or Aluminium
(Multiple M3 Washers could also be used to effectively make a 3mm spacer)
Aluminium Version Effector:
M3x8 Hex Counter Sunk Screws x4 (for securing the part cooling fan mounts to the effector)
M3x8 HEX Button Head Screws x2 (for securing the Mosquito cooling fan mount to the effector)
Clone Mosquito Hot End (Complete)
Heater Cartridge 24V 50W
Thermistor (3mm Tube style or whatever suits the Clone Hot End)
30x30x10 24VDC Fan
40x40x10 24VDC Part Cooling Fans X2 or 40x40x5 Part Cooling Fans x2
JST SM2.54 Connectors x5
Screws & Hardware:
(The screw head type is only a suggestion)
M3x16 HEX CAP Screws x6 (for 40x40x10 24VDC Part Cooling Fans)
M3x20 HEX Button Head Screws
M3x16 HEX Button Head Screws x2 (4 Recommended)
Spacers 3mmID 6mmOD x3mmL Nylon or Aluminium
(Multiple M3 Washers could also be used to effectively make a 3mm spacer)
Aluminium Version Effector:
M3x8 Hex Counter Sunk Screws x4 (for securing the part cooling fan mounts to the effector)
M3x8 HEX Button Head Screws x2 (for securing the Mosquito cooling fan mount to the effector)

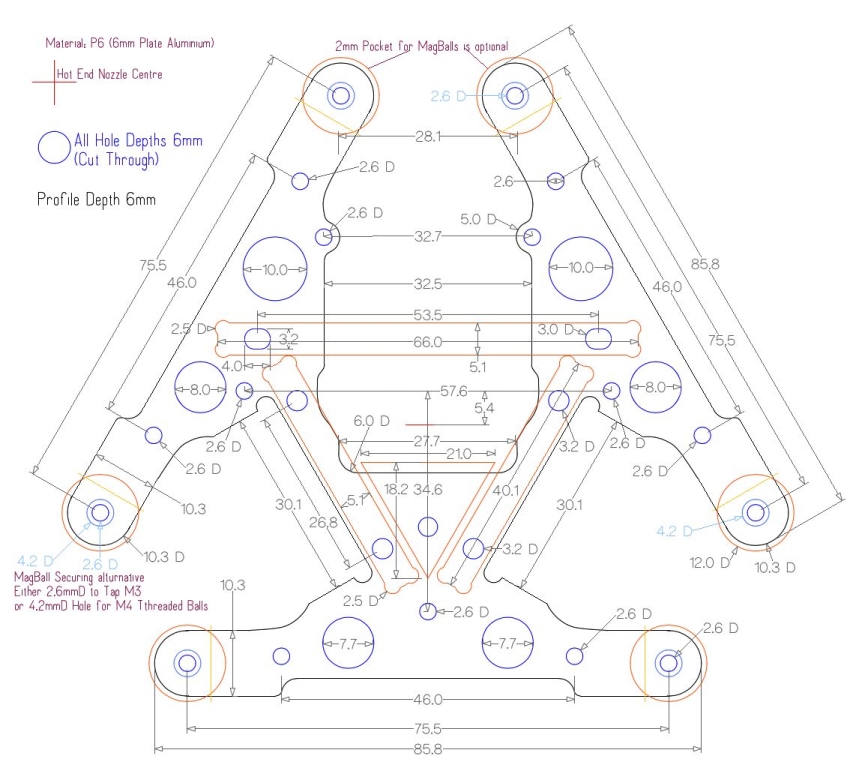

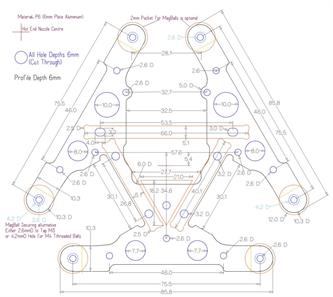

 Drawing Example.jpg) |
Example drawing. Downloads Collection bottom of page

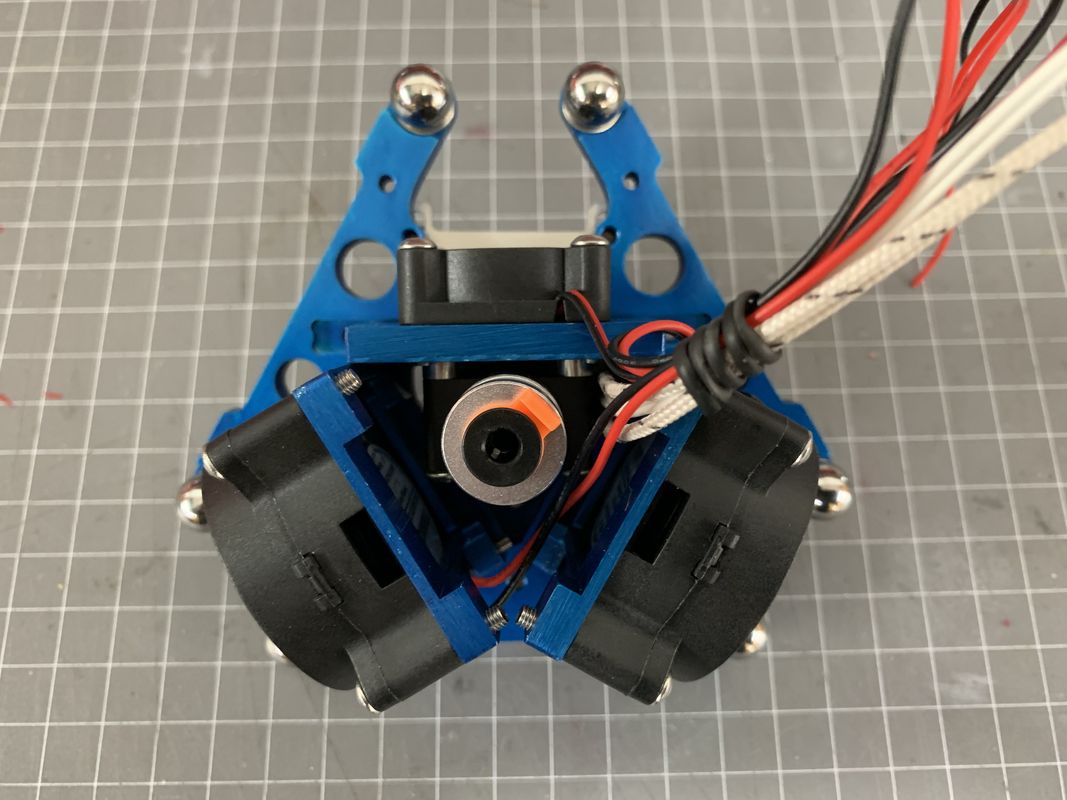

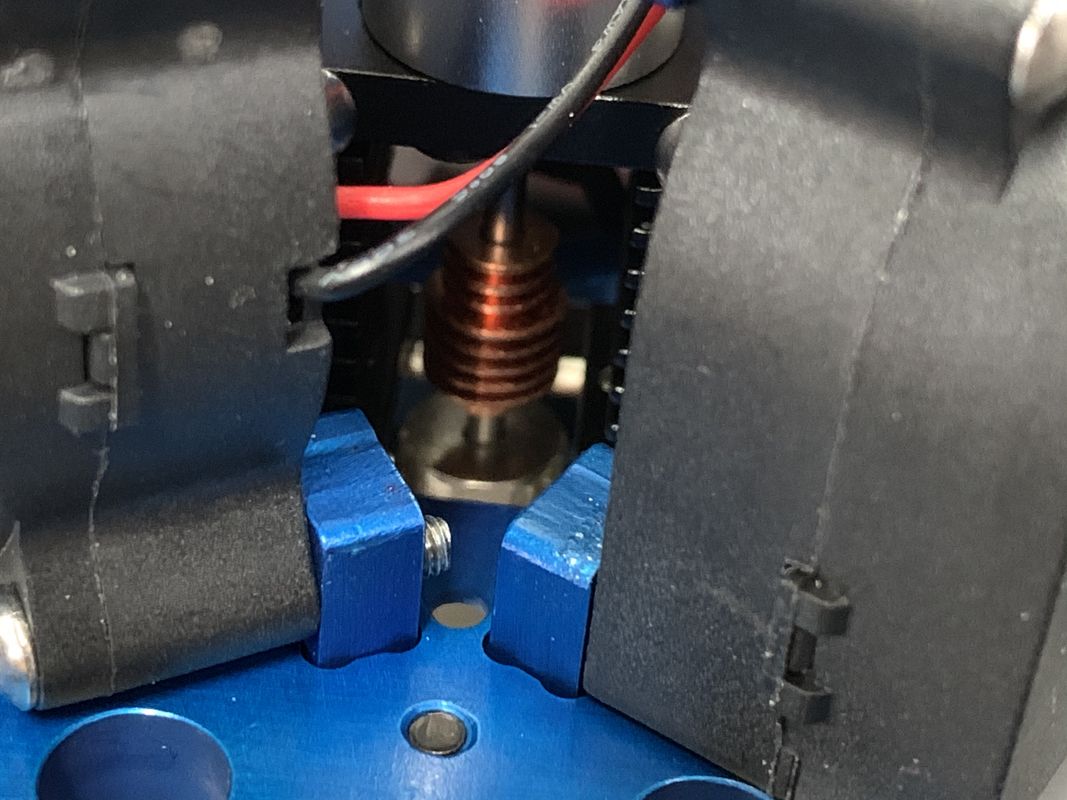

Blue Effector Photos (.jpg)
Click an Image for a larger view
I am now making for sale an updated version-2 of this effector in both MagBall and for the Original Predator Arms.
Please use the Contact Me form to make enquiries.
This page is now only for the original Version-1 effector design as such some of it does not reflect the current Version-9 design I have for sale.
An update page for version 9 is now posted.
Please use the Contact Me form to make enquiries.
This page is now only for the original Version-1 effector design as such some of it does not reflect the current Version-9 design I have for sale.
An update page for version 9 is now posted.
